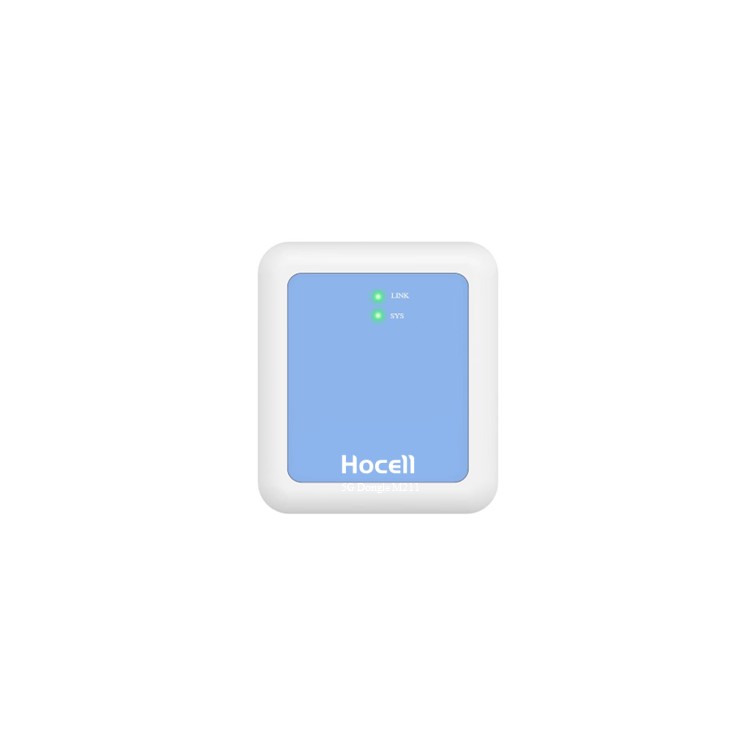

5G NR USB Dongle M211

The 5G Dongle M211 is an USB Type-C portable 5G data terminal based on Qualcomm Snapdragon X55 modem. M211 is the first 5G dongle in the industry to support plug and play with all the major OS (operation system), including Windows, Linux, Android and Mac OS, making it very convenient for consumers or industrial users to connect their PC, wearable devices and industrial equipment to 5G networks.

 Overview



The 5G NR USB Dongle M211 is a high-performance 5G data terminal based on Qualcomm Snapdragon X55 modem, supporting 5G SA&NSA, LTE and 3G networks from telecom service providers of most countries in the world. An USB Type-C interface is adopted to power the device and transmit high-speed internet data converted from cellular SIM card. With an USB-C to USB-C cable, or an USB-C to USB-A cable, the 5G dongle can be connected to either USB-C or USB-A ports of different equipment.



M211 is the first 5G dongle in the industry to support plug and play with all the major OS (operation system), including Windows, Linux, Android and Mac OS, which makes it very convenient for consumers or industrial users to connect their PC, wearable devices, professional equipment or industrial terminals to 5G/LTE mobile networks and enjoy the super-fast internet connection at home, in the office, outdoors or on the way, for either entertainment, study or professional purpose.





Application Scenarios



M211 can work with consumer devices or industrial equipment that are based on Windows, Linux, Android or Mac OS. The device or equipment should have an USB Type-C or USB-A interface of USB 3.1 (Gen2) version or above, with the capability to deliver power of at least 10W to the terminal connected to it.







Hardware & Radio Specification



Item

Description

Chipset

 Qualcomm Snapdragon X55

RF Standard

 5G NR SA&NSA (3GPP Release 15)/TDD-LTE/FDD- LTE/WCDMA

  Frequency Bands

 5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

 5G NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

 LTE-FDD:

 B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48

 WCDMA: B1/B2/B3/B4/B5/B6/B8/B19

  MIMO

 5G NR

 Downlink 4 ×4 MIMO: n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79

 Uplink 2 ×2 MIMO: n41

 LTE

 Downlink 4 ×4 MIMO:   B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66

Memory

 Flash: 128Mb

 RAM: 1Gb DDR3

Indicators

  2 LED Indicators (SYS, LINK)

Antenna

 4 Built-in 5G/LTE antennas

SIM

 1 SIM (Micro)

USB & Power Supply

 TYPE_C USB3.1, 5-16V

Compatible OS

 Plug and play with Windows/Linux/Android/Mac

Power Consumption

 <10W

Peak Throughput

 5G SA: 4.2Gbps (DL), 450Mbps (UL); 5G NSA: 5Gbps (DL), 650Mbps (UL);

 LTE: 2Gbps (DL Cat20),200Mbps (UL Cat18);

 WCDMA: 42Mbps (DL), 5.76Mbps (UL).

Dimension

 78mm* 70mm* 17mm

Weight

 110g




Software Specification



Item

Description

Language

 English, simple Chinese, other languages could be customized.

Https/Http

 Both

  User Login

 Supports two users (admin user and normal user) with different   authorization

SIM Card

 PIN Management; SIM card Authentication

Diagnosis

  Export current diagnosis results and operation logs

Statistics

 Link Status (LAN); Transmit / receive traffic in packets; Up Time

IPV6

 IPv6/IPv4 dual stack

Network Status

 Signal strength, network type, network connection status, operator name,   system mode, SIM card status

Carrier SIM Lock

 Supported
