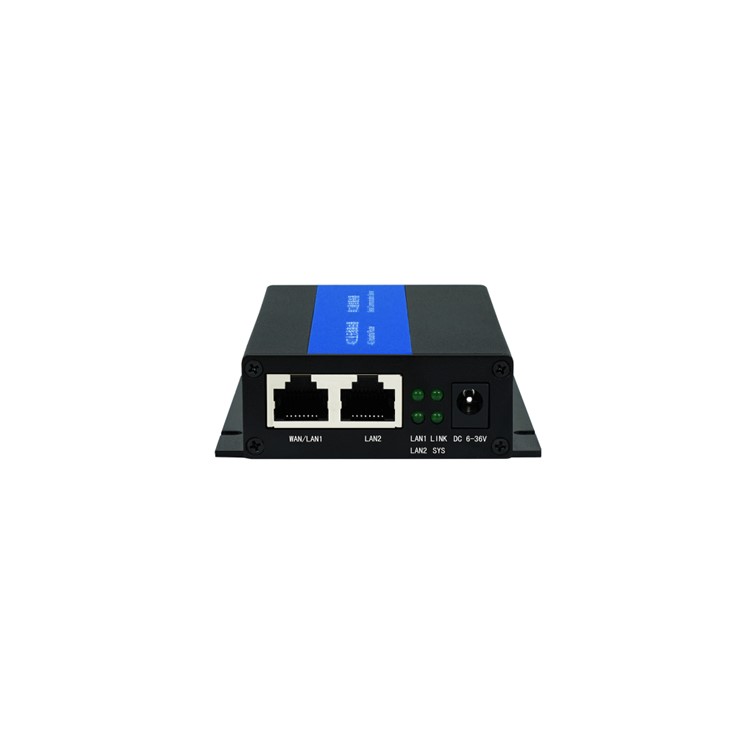

Industrial4GRouterIM9114picture2

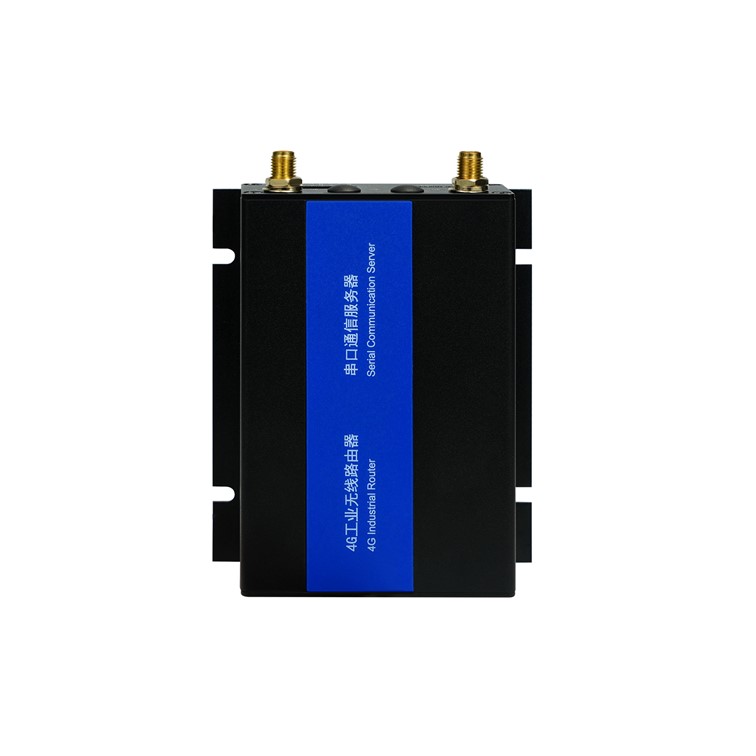

Industrial4GRouterIM9114picture3

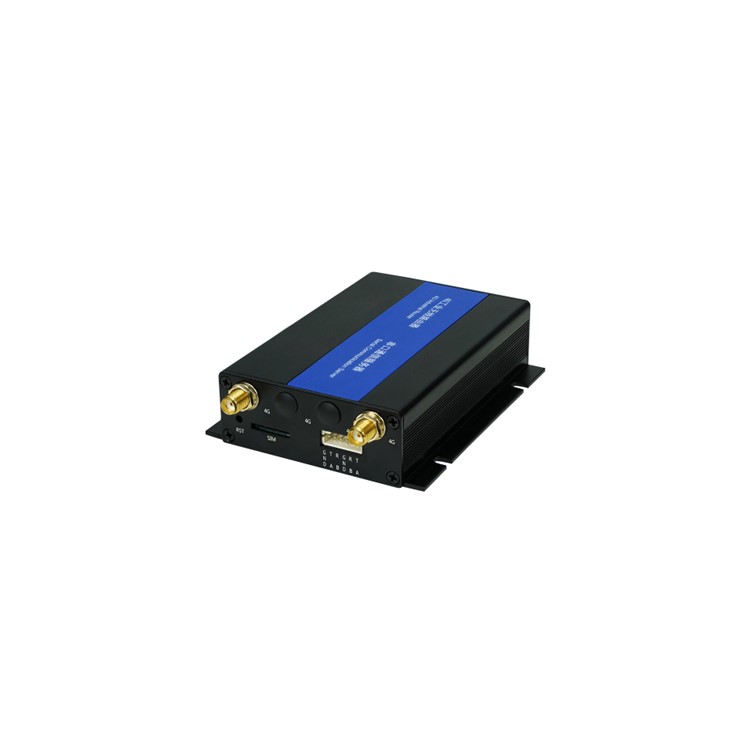

Industrial4GRouterIM9114picture1

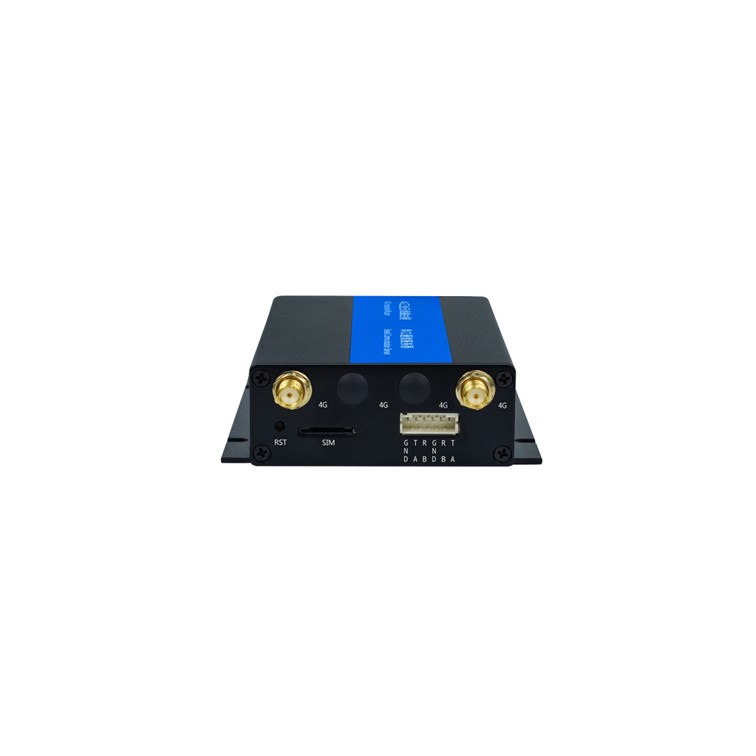

Industrial4GRouterIM9114picture4

Industrial 4G Router IM9114 (mini size)

Hocell industrial 4G router IM9114 is an IoT gateway that supports multiple ways of internet connection (Ethernet/4G) and local data access (Ethernet/RS232/RS485). Characterized by super compact size, the IoT device could be easily mounted in different scenarios, such as vending machines, robots, industrial equipment, self-service terminals, environmental monitoring station, etc.

 Overview



Hocell industrial 4G router IM9114 is an IoT gateway that supports multiple ways of internet connection (Ethernet/4G) and local data access (Ethernet/RS232/RS485). Based on high-performance MIPS communication processor and embedded operating system, the router integrates a range of communication protocols from logical link layer to application layer.

Designed with all-metal shell and selected industry-level components, the gateway can adapt to harsh environment from -30℃ to 70℃. Characterized by super compact size, the IoT device could be easily mounted in different scenarios, such as vending machines, robots, industrial equipment, self-service terminals, environmental monitoring station, etc.



Key Features





  • Designed with super compact size that’s similar to a credit card.
  • Industrial power with wide input voltage: DC 6V-12V / 3A, built-in power input reverse protection, over-voltage and over-current protection.
  • Industrial class wireless router adopting industrial wireless module, with strong anti-interference feature and stable data transmission.
  • Industrial grade metal shell design, anti-dust design with protection level IP30.
  • UIM/SIM card ESD protection: 1.8V/3V push rod type user card interface with built-in 15KV ESD protection.
  • Serial port ESD protection: serial port RS232 with built-in 15KV ESD protection, IEC61000-4-2 (Contact) ±30KV,IEC61000-2-4(Air) ±30KV.
  • Support local or cloud management and upgrade.
  • Support various anti-disconnection features such as automatic sensing of network disconnection, automatic restart after dialing failure, etc.
  • Support network link backup: seamless switching to 4G network in case of Ethernet cable disconnection; automatic detection of cable recovery.
  • Supports VPN security tunnels, including PPTP and L2TP.
  • Hardware watchdog to ensure the stable and reliable operation of the equipment.
