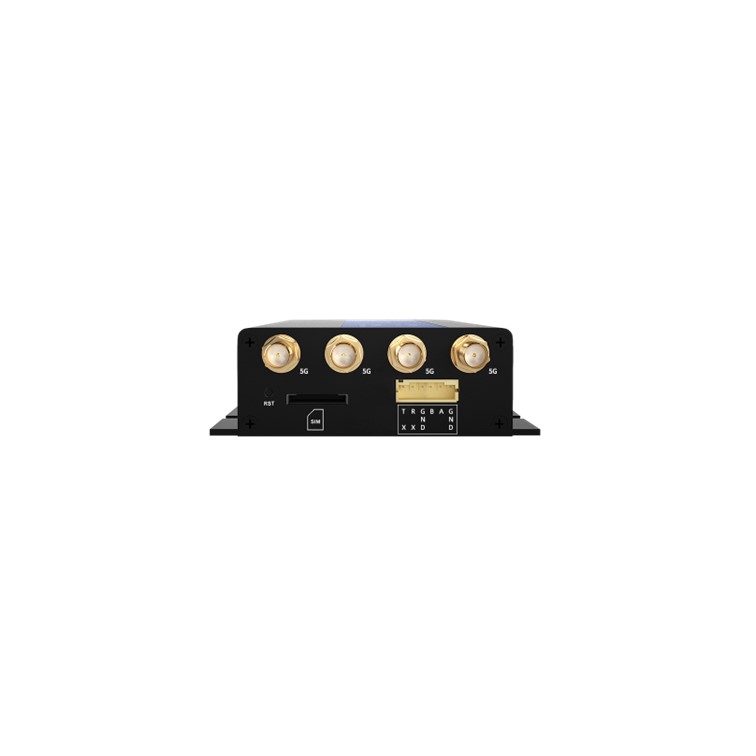

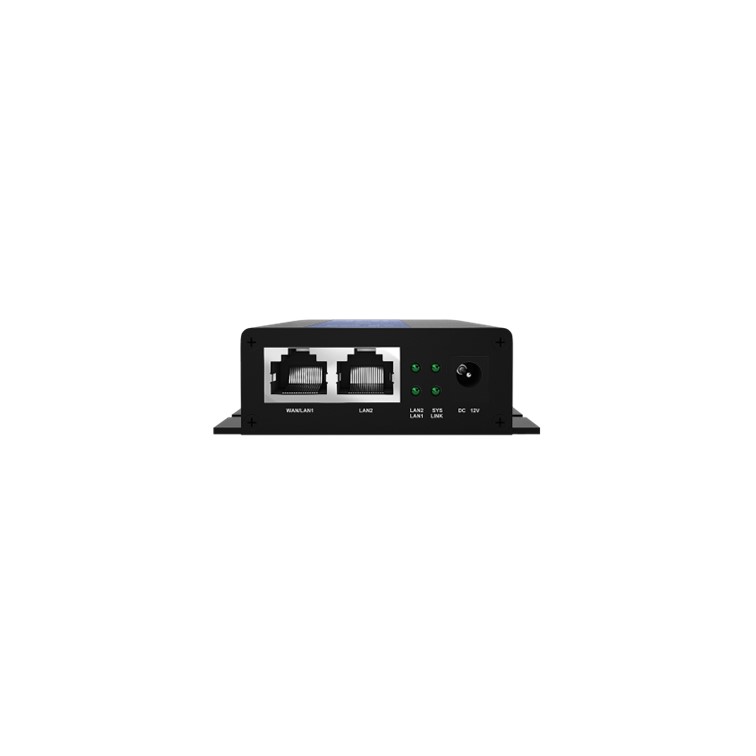

Industrial 5G Router IM9115 (mini size)
Hocell industrial 5G router IM9115 is an IoT gateway that supports multiple ways of internet connection (Ethernet/5G/4G) and local data access (Ethernet/RS232/RS485). Based on high-performance MIPS communication processor and embedded operating system, the router integrates a range of communication protocols from logical link layer to application layer.
Designed with all-metal shell and selected industry-level components, the gateway can adapt to harsh environment from -30℃ to 70℃. Characterized by super compact size, the IoT device could be easily mounted in different scenarios, such as vending machines, robots, industrial equipment, self-service terminals, environmental monitoring station, etc.
Based on Qualcomm Snapdragon X55 modem, IM9115 supports 5G, LTE and 3G networks from telecom service providers of most countries in the world.
- Designed with super compact size that’s similar to a credit card.
- Industrial power with wide input voltage: DC 6V-36V / 3A, built-in power input reverse protection, over-voltage and over-current protection.
- Industrial class wireless router adopting industrial wireless module, with strong anti-interference feature and stable data transmission.
- Industrial grade metal shell design, anti-dust design with protection level IP30.
- UIM/SIM card ESD protection: 1.8V/3V push rod type user card interface with built-in 15KV ESD protection.
- Serial port ESD protection: serial port RS232 with built-in 15KV ESD protection, IEC61000-4-2 (Contact) ±30KV，IEC61000-2-4(Air) ±30KV.
- Support local or cloud management and upgrade.
- Support various anti-disconnection features such as automatic sensing of network disconnection, automatic restart after dialing failure, etc.
- Support network link backup: seamless switching to 5G network in case of Ethernet cable disconnection; automatic detection of cable recovery.
- Supports VPN security tunnels, including PPTP and L2TP.
- Hardware watchdog to ensure the stable and reliable operation of the equipment.
