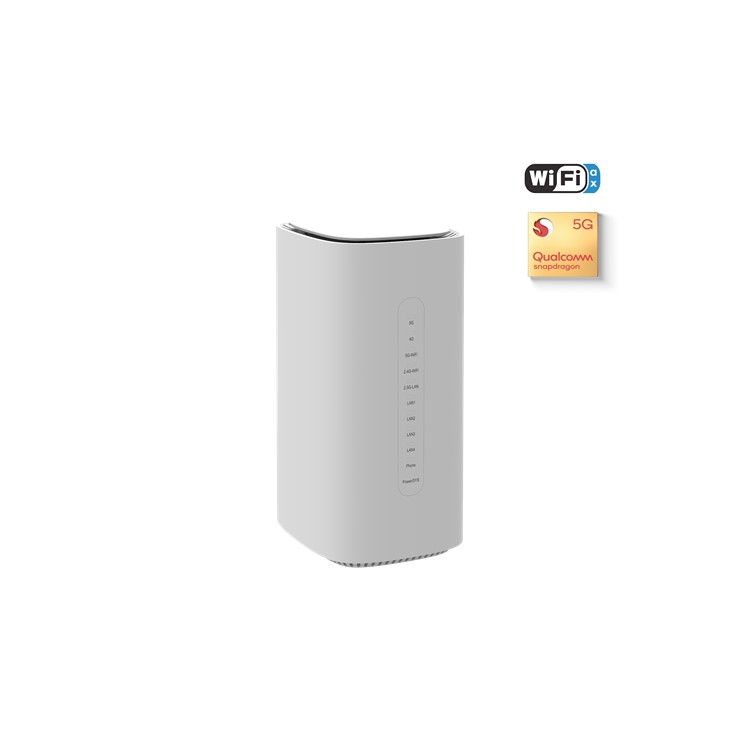

5GCPEM111-Hocell

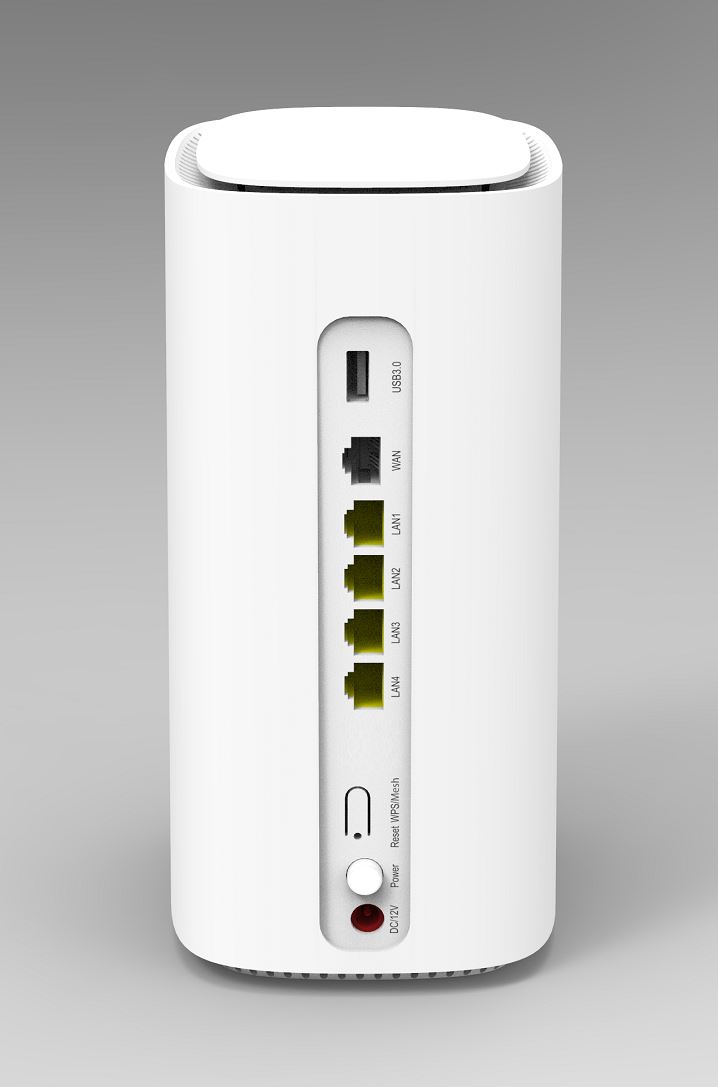

5GCPEM111back-Hocell
넳 넲

5G CPE M111 (5G & LTE Wireless Router)

The indoor 5G CPE M111 is based on Qualcomm® Snapdragon™ X55 Modem-RF System. It supports 5G NR, 4G LTE and Ethernet WAN networks, and provides the latest Wi-Fi 6 and multiple LAN ports for superfast broadband access of personal terminals and IoT devices. M111 is suitable for home or commercial scenarios that require rapid deployment of WIFI hotspots and wired broadband networks.
ꄴPrevious: null
ꄲNext: null

 Overview



The 5G CPE M111 is a high-performance 5G indoor wireless router based on Qualcomm™ SDX55 modem, which supports 5G NR (SA&NSA), TDD-LTE, FDD-LTE and Ethernet. With built-in 802.11ax (Wi-Fi 6) technology, the CPE has wider wireless coverage while providing bigger bandwidth. Besides, it provides abundant wired interfaces including a WAN/LAN port, 4 LAN ports and an RJ11 port for VoLTE/VoNR service.

M111 is suitable for home or commercial scenarios that require rapid deployment of WIFI hotspots and wired broadband networks. It can meet the demand for ultra-fast network speed, increasing number of IOT connections, and enabling the latest services such as VR, AR, and 4K&8K HD video streaming.



Key Features


High Internet Speed

M111 supports 5G NR and 4G  frequency bands of global networks, with a maximum rate of 2.5Gbps. The wireless LAN supports the latest IEEE 802.11ax protocol standard, and the WiFi transmission rate of AX3600 can easily support high-definition video and high-speed network applications.



Rich Functions

In addition to supporting 5G NR and WLAN, M111 also supports advanced functions such as VoLTE voice, SMS, firewall, VPN, and QoS. Multiple management and maintenance methods including TR069, Web, CLI and APP* bring flexibility and convenience for users’ operation, and online software upgrade can guarantee continuous update of product functions.



LAN/WAN Conversion

The 2.5G Ethernet port of M111 supports LAN/WAN conversion and can be self-adapted* or manually configured. When fixed broadband is available, the device can act as an ordinary WIFI router through the LAN/WAN interface, protecting users' investment and making it more flexible to use.



Dual Connection

M111 supports dual uplink connection between 5G NR and Ethernet WAN. When an uplink connection is disconnected, it will automatically switch to the backup line. This function ensures the safety and stability of user data transmission and improves the reliability of user services.



Technical Specification



Cellular Network

1) 5G Baseband: Qualcomm® Snapdragon™ X55 Modem-RF System
2) 5G Network Modes: SA (standalone), NSA (non-standalone), 5G NR FDD, 5G NR TDD
3) 5G Bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79
4) 4G Bands: LTE-FDD B1/3/5/7/8/18/19/20/26/28/32, LTE-TDD B34/38/39/40/41/42/43
5) WCDMA Bands: B1/3/5/6/8/19
6) 5G Standards:3GPP Release 15
7) Built-in 4*4 5G antennas and 4*4 LTE antennas, >3dBi

WiFi 6（802.11ax）
1) Working Radio: #1: 600Mbps @ 2.4GHz; #2: 2475Mbps @ 5.1-5.8GHz
2) DL/UL MU-MIMO & OFDMA
3) Wi-Fi Standard: 802.11 a/b/g/n/ac/ax
4) Antenna: built-in 4*4 2.4GHz antenna, 4*4 5GHz antenna, >3dBi



Data Switching

1) Mobile 5G/4G/3G Connection
2) 2.5G Ethernet Connection
3) Dual Connection with Mutual Backup
4) Bride Mode & Routing Mode
5) WiFi son/EasyMESH*
6) SMS
7) VoLTE/VoNR*
8) Advanced Firewall
9) MAC/URL Filtering
10) WiFi Security
11) IPv4/IPv6
12) WebUI / TR069 /APP* Mangement
13) Plug and Play (UPnP)
14) Online and Local Software Upgrade

Hardware Specification
1) Ethernet:1*2.5Gbps WAN/LAN, 4* GE LAN
2) Telephone: 1*FXS
3) 1* SIM Slot（Micro-SIM）
4) USB 3.0
5) Power Input
6) Button: WPS/MESH, reset, power
7) LED Indicator
–5G NR
–4G LTE
–5G WiFi
–2.4G WiFi
–LAN
–Phone
–Power/SYS Status

9) General

–Working temperature:-10℃～55℃, Storage temperature: -40℃～+70℃
–Humidity:5%～95%
–Dimensions:120x110x213.7mm

Package List

One 5G CPE Router
One 1m Cat6 Ethernet cable
One Power Adapter
Quick Start Guide



Interfaces and LED





* Under development
