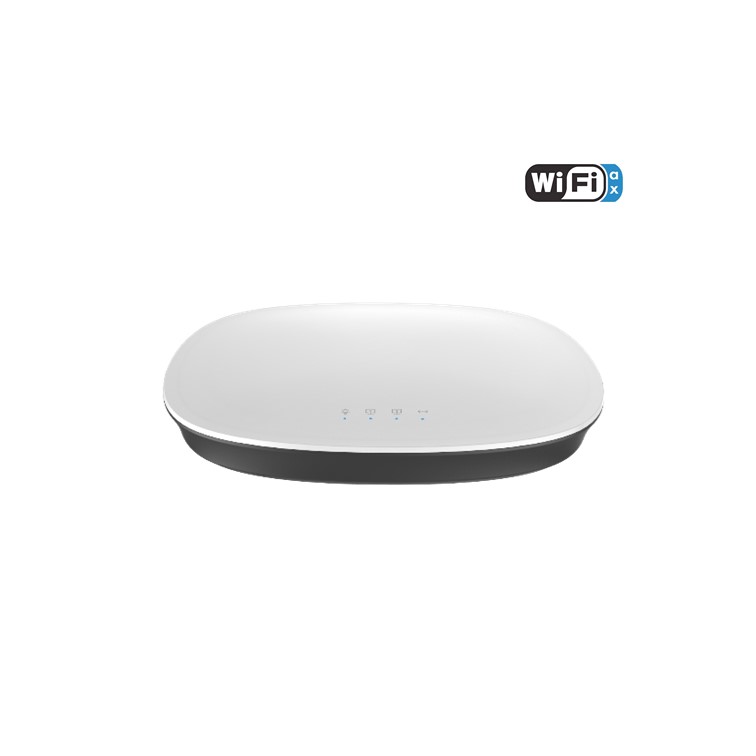

AX1800 Dual-Band MESH+ WiFi 6 Main Router

The dual-band WiFi 6 router (Model: E06MX-K2) is based on Media Tek chipset and can support up to 1800Mbps network bandwidth. It can easily support internet browsing, games, 4K/8K HD video and IOT connection services. The router has four built-in antennas of high performance. And it's very convenient to extend WiFi coverage by adding sub-node routers through mesh network.

ꄴPrevious: AX3100 Dual-Band MESH+ WiFi 6 Main Router

ꄲNext: null

Overview

AX1800 Dual-Band MESH+ WiFi 6 Main Router is based on the latest 802.11ax WiFi 6 technology. Compared to similar products of previous generation, it provides better wireless signals, higher network throughput, bigger coverage area and improved battery life of connected devices, thereby leading to superior networking experience. The WiFi 6 router can meet the increasing access requirements of mobile terminals and IOT devices. The main router itself can cover 2000 sq ft, and it’s very convenient to extend wireless coverage by adding sub-node router through a mesh network.

Key Features

Enlarge the wireless coverage for whole home

Brand-new Mesh WiFi system, more powerful computing and radio ability, increase the wireless range up to 50% to satisfy the bigger scale coverage.

Enhanced new WiFi technology – WiFi-6

With OFDMA and MU-MIMO, new WiFi System enables more efficient, stable, and faster transmission even when multiple devices are transmitting data at the same time.

More space streams and higher capacity

Up to 6 streams for each device, provides 1800Mbps (600+1200) bandwidth for high speed transmission, makes you enjoy the smooth UHD online video and low-latency games. Meanwhile, WiFi 6 brings the ability to agree more terminations connected, it suits to IOT appliance greatly.

Mixed network for convenient roaming

New mesh system allows you connect two or more devices by ethernet cable or wireless mixed, it improves the deployments of wireless network and optimized the seamless feature.

Interfaces

APP Functions

Mobile App provides better user experience of setup and management.

• Safe Wi-Fi Setting

• Parental Control

• Client management

• Network Map

• iOS & Android

Technical Specification

•Wireless Connectivity

– Radio 1: 600Mbps @ 2.4GHz: Supports 1024QAM

– Radio 2: 1200Mbps @ 5GHz: Supports 1024QAM

•200 wireless terminals with Peak Connection

•IEEER 802.11a/b/g/n, 802.11ac wave2, 802.11ax

•MU-MIMO capable for simultaneous data streaming

•Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands

•Smart QoS, Firewall, Upnp, NAT

•PPPOE / DHCP / Static WAN

•WiFi Security – WPA2/PSK

•Solution – MT7621A+MT7915DA+MT7975DN, – 16MB Flash+128MB NAND, – 256MB DDR3

•Core Technology – MESH+ Self-Networking

•Antenna – Six (4) high performance internal antennas

•Ethernet Ports – Two (2) 10/100/1000Mbps Ethernet ports, – One (1) WAN & One (1) LAN

•Reset & Sync Button (reuse)

•LED Indicator：Power, WAN Connection, LAN Connection, MESH+

•Environment

– Working Temperature: -40℃～+70℃

– Working Humidity：5％～95％

•Dimensions: 193mm*172mm*30mm

•Weight: 286g

Package List

• One (1) MESH+ Router (E06MX-K2)

• One (1) 1m Cat5e Ethernet cable

• One (1) DC12V/2A power adapter

• Quick start guide
