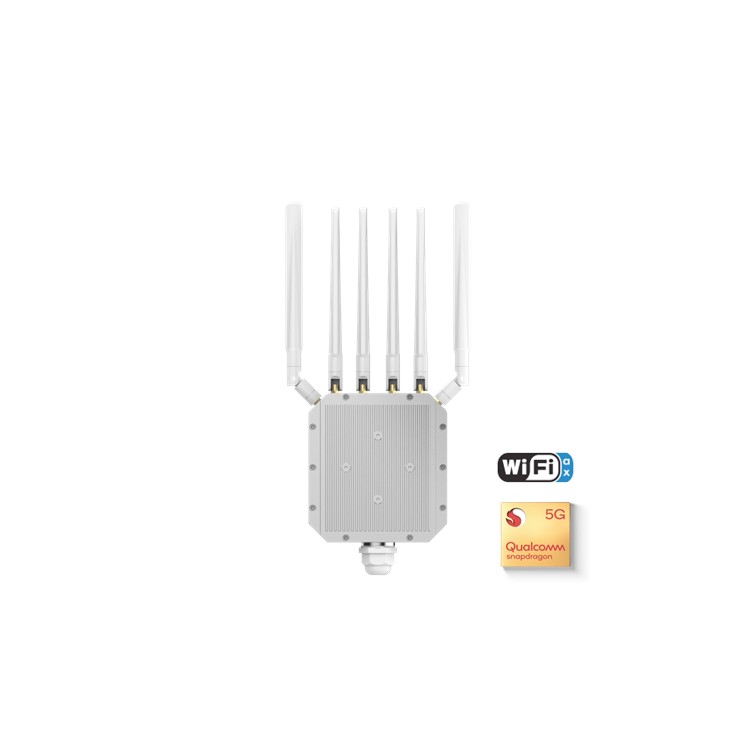

Outdoor 5G CPE IM725 (PoE & Wi-Fi 6)
Overview
Hocell Outdoor 5G CPE IM725 is a 5G & LTE wireless router based on Qualcomm X62, which supports 5G NR (SA&NSA), TDD-LTE and FDD-LTE. It’s designed with a SIM card slot and a 2.5Gbps LAN port of PoE+, converting cellular network signals into wired network and Wi-Fi 6 (AX3000). With IP66 protection level and operating temperature from -20℃~+55℃, the device can support outdoor harsh environment. Designed with PoE+, it eliminates the trouble for users to fetch electricity outdoors.
IM725 is an ideal plug-and-play wireless broadband access solution for outdoor or industrial application scenarios where Wi-Fi and/or ethernet networks are required, such as smart cities, public Wi-Fi hotspots, campus and outdoor education, rural and remote areas, construction sites, outdoor events and temporary setups, mobile offices and vehicles, IoT deployments, etc.
Key Features
Hardware & Radio Specification
|
Chipsets |
Qualcomm IPQ5018 + Qualcomm Snapdragon X62 |
|
Flash |
16MB NOR+ 1GB NAND flash |
|
RAM |
4Gb DDR3 |
|
5G Standard |
3GPP Release 16, Sub-6 GHz |
|
5G Network Mode |
NSA/SA |
|
5G/4G Data Rate |
5G SA Transmission Speed: DL 2.4Gbps / UL 900Mbps 5G NSA Transmission Speed: DL 3.4Gbps / UL 550Mbps LTE: DL 1.6 Gbps, UL 200 Mbps (Note: Actual speed depends on operator network and environment) |
|
5G Frequency Bands |
NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/ n77/n78/n79 SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/ n77/n78/n79 |
|
4G&3G Frequency Bands |
LTE Category: Downlink Cat 19/ Uplink Cat 18 LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 LAA: B46 WCDMA: B1/B2/B4/B5/B8/B19 |
|
CA |
2CC, 3CC, 4CC, 5CC (CA combinations could be provided additionally) |
|
EN-DC |
1LTE+1NR, 2LTE+1NR, 3LTE+1NR, 4LTE+1NR, 5LTE+1NR, 1LTE+2NR, 2LTE+2NR, 2NR |
|
TX Power |
NR: 23 dBm ±2 dB (Class 3), 26 dBm ±2 dB (Class 2/HPUE Bands n38/n40/n41/n77/n78/n79) LTE: 23 dBm ±2 dB (Class 3), 26 dBm ±2 dB Cclass2/HPUE bands B38/B41/B42/B43) |
|
Wi-Fi Frequency |
2.4GHz&5.8GHz |
|
Wi-Fi Standard |
5.8GHz: 802.11a/n/ac/ax, 2T2R MIMO; 2.4GHz: 802.11b/g/n/ax, 2T2R MIMO |
|
Wi-Fi Throughput |
2.4GHz: 600Mbps; 5.8GHz: 2400Mbps |
|
Wi-Fi Maximum Transmit Power |
2.4GHz: 21-25dBm; 5.8GHz: 19-24dBm |
|
Wi-Fi Connection |
100 clients |
|
Modulation Mode |
5G: GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM Wi-Fi: 1024-QAM / OFDMA |
|
Antennas |
4 external 5G/LTE antennas 2 external Wi-Fi antennas |
|
Interfaces |
1*2.5Gbps LAN (PoE+), 1*SIM card slot, 1*reset button |
|
LED Indicator |
Power, 4G Signal, 5G Signal, Wi-Fi Signal |
|
Power Supply |
POE+ Power Adaptor (48V/1A) |
|
Power Consumption |
＜24W |
|
Environment |
Operating Temperature: -20℃～+50℃ Storage Temperature: -40℃～+70℃ Humidity: 5％～95％（Non condensation） |
|
Dimension |
145x130x45mm |
|
Weight |
1.2g (Excluding accessories and package)/1.8kg (Including accessories and package) |
Software Specification
|
Software Functions |
|
Firewall |
|
IP V4/V6 |
|
Smart QOS |
|
Parent Control |
|
UPNP |
|
VPN （L2TP VPN client, PPTP VPN client） |
|
APN/Multi-APN |
|
DHCP |
|
DDNS |
|
DMZ |
|
Port Mapping |
|
MESH (Private Mesh) |
|
APP |
|
PIN management |
|
SIM card authentication |
|
Static route |
|
NAT/router mode |
|
TR069 |
|
WebUI update |
|
Wi-Fi encryption (Open, WEP, WPA2-PSK, WPA3-SAE, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE) |
|
Wi-Fi band aggregation |
|
Backup/restore settings |

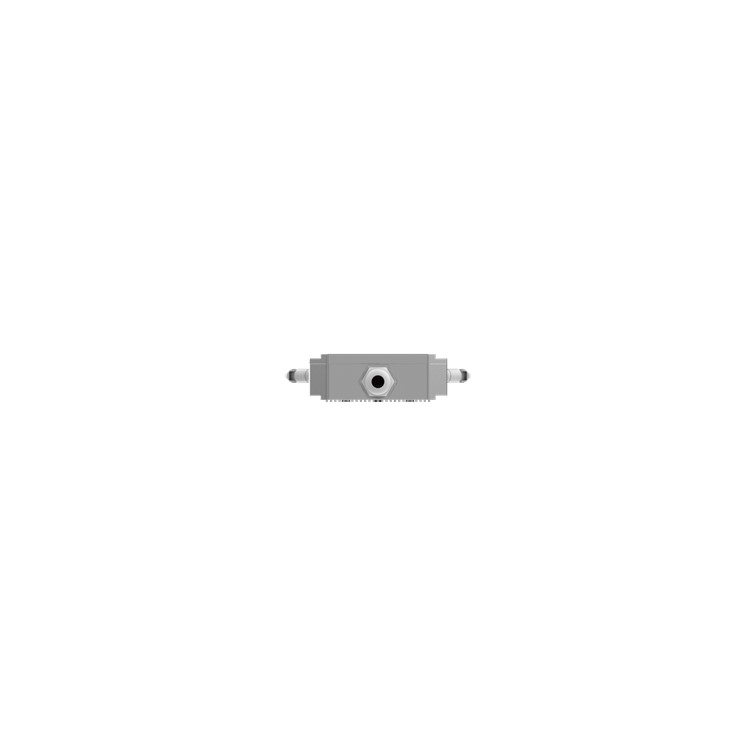

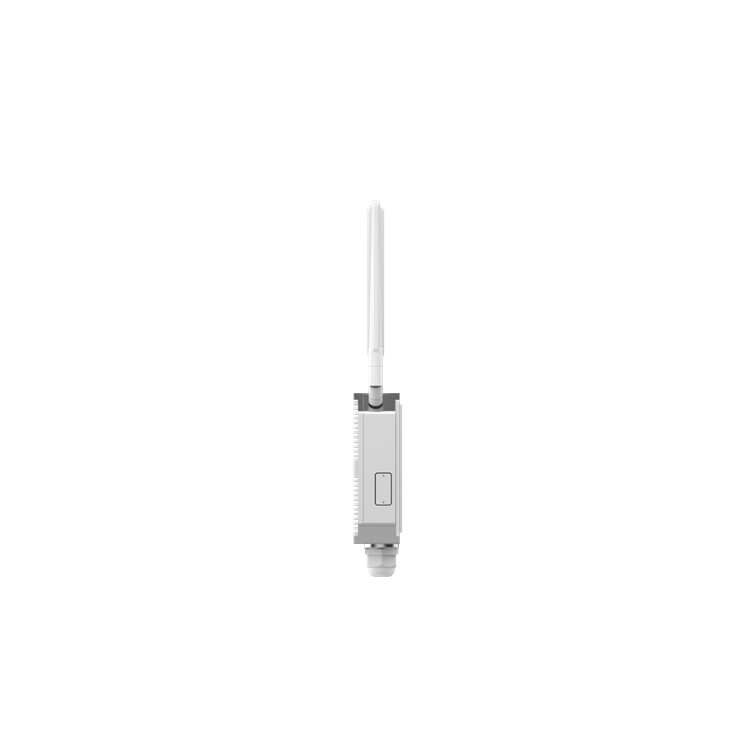

Appearance and Interfaces
