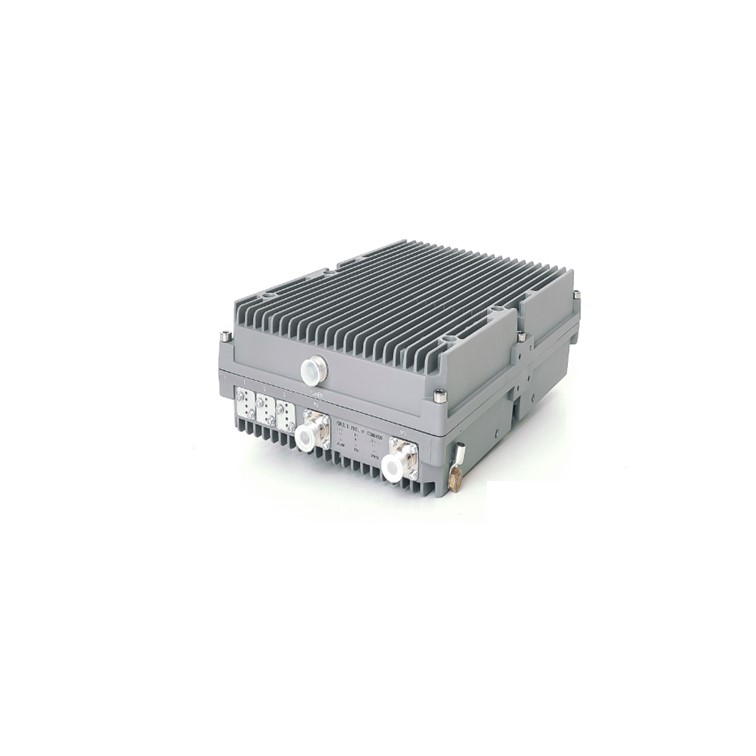

30-43dBm 5G&4G Outdoor Signal Repeater
Introduction
A signal repeater can relay and amplify cellular signals from wireless base stations, so as to extend cell signals to closed blind areas or improve signal quality in weak coverage areas. It amplifies only the downlink and uplink signals of the selected frequency bands and filters out useless signals, thereby providing users with seamless network connectivity and uninterrupted communication.
The outdoor 5G&4G wireless signal repeater supports up to four 5G&4G bands in one equipment. It’s a simple, easy-to-install and low-cost solution to provide both 5G and 4G signal coverage in blind or weak coverage areas. And it’s ideal for the scenarios where transmission network resources are difficult to reach.
Application Scenarios
Major Parameters
|
Items |
Parameters |
Note |
|
|
Downlink |
Uplink |
||
|
Frequency (MHz) |
5G NR: n1/n3/n28/n38/n40/n41/n78/n79 |
Frequency bands could be customized. Support up to four bands in one repeater |
|
|
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B9/B10/B20/B25/B26/B28/B66/B70 4G TD-LTE: B34/B38/B39/B40/B41 |
|||
|
Max. Output Power (dBm) |
30/37/40/43±2 |
10/27/30±2 |
|
|
Max. Gain (dB) |
80/95±3 |
75/90±3 |
|
|
Maximum Input Power（dBm） |
-10 |
|
|
|
Gain Adjustment Range (dB) |
≥30 |
|
|
Network Diagram
Scenario 1: Indoor areas (building, factories, underground areas, etc.)
Scenario 2: Open areas (mountains, mining, etc.)
