Container and Trailer GPS Tracker - 2G/4G Air Vent Type

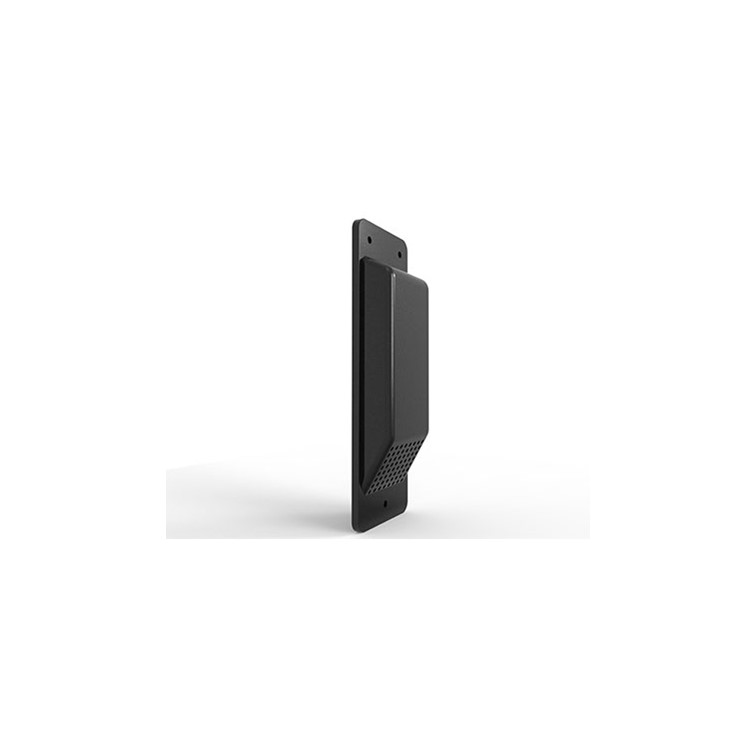

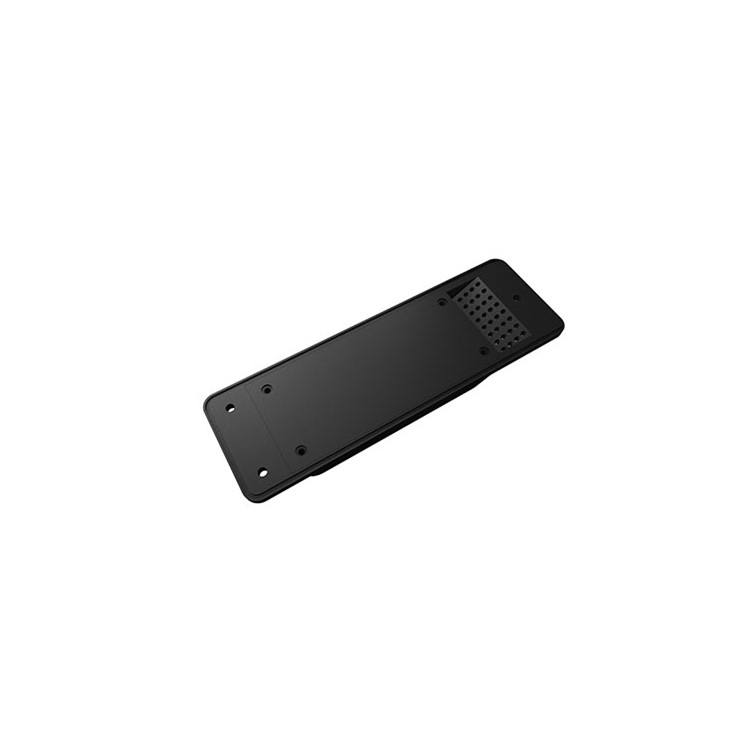

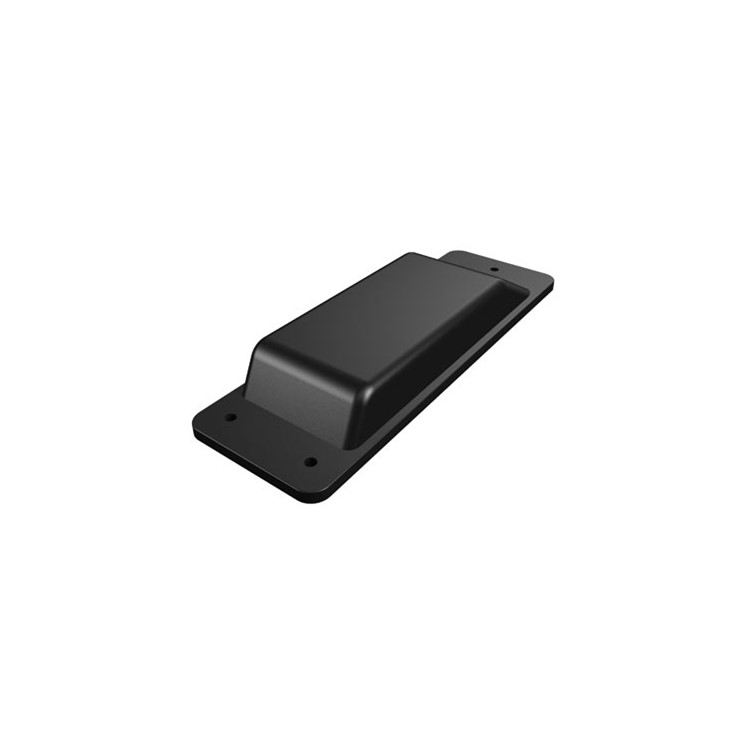

TRC05-2G/4G is a 2G/4G tracker which is specially designed for positioning and tracking of containers and trailers. It supports GPS, LBS and AGPS positioning. It has the same shape as the air vent of a container, the device has an 8100 or 10800mah battery built inside and it can last for 3 or 5 years if uploading data once a day.
ꄴPrevious: Container and Trailer GPS Tracker - 2G/4G Padlock Type
ꄲNext: Asset GPS Tracker - 2G/3G/4G

Highlights



  • Container air vent shape, easy to install
  • 3- or 5-years working time if uploading data once a day
  • Lower power consumption
  • IP67 waterproof
  • Built-in G-sensor
  • Support eSIM for vibration resistance
  • Support tamper proof alarm
  • Multiple positioning mode: GPS, AGPS, LBS
  • Support OTA upgrading, reduce maintenance on-site
  • Support 2 guardian numbers for remote monitoring and receiving alarms



Functions



  • Positioning and monitoring
  • GPS Positioning
  • AGPS Positioning
  • LBS Positioning（Need map database support）
  • Intelligent Tracking
  • Motion alarm
  • Battery Level Detection
  • Built-in eSIM (Optional)
  • Light Sensor
  • Blind Zone Compensation
  • Clock Mode



Specification



Physical

Dimension

205mm*68mm*27mm（L*W*H）

Weight

200±5g

Cellular

Communication module

Fibcom G500L

Frequency

Working frequency:

GPRS: 850/900/1800/1900MHz

Sensitivity:    -107dBm@850/900MHz;

                      -106dBm@1800/1900MHz

Output power:  Class 4 (2W)@850/900MHz;

                         Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B

GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s

Power

Battery

Disposable Lithium-ion battery and （3.6V，8100 or 10800 mAh）

and ultra-low discharge rate: less than 1%, store one year below 25℃

Power consumption

Average working current <100mA; Power save current <15uA;

GSM antenna

Internal High Gain

GPS antenna

Internal High Gain

SIM

Micro SIM

Indicator

2 status LEDs, Green: GPS,  Red: EMTC

Environmental Parameter

Working Temperature

-20℃ ~ +70℃

Humidity

5% ~ 95% (no fog)

IP Rating

IP67
