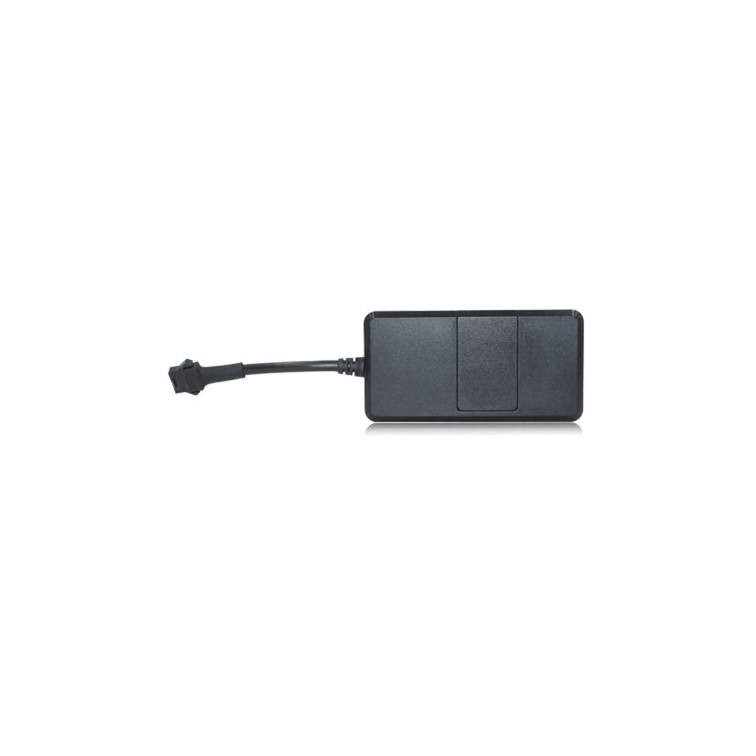

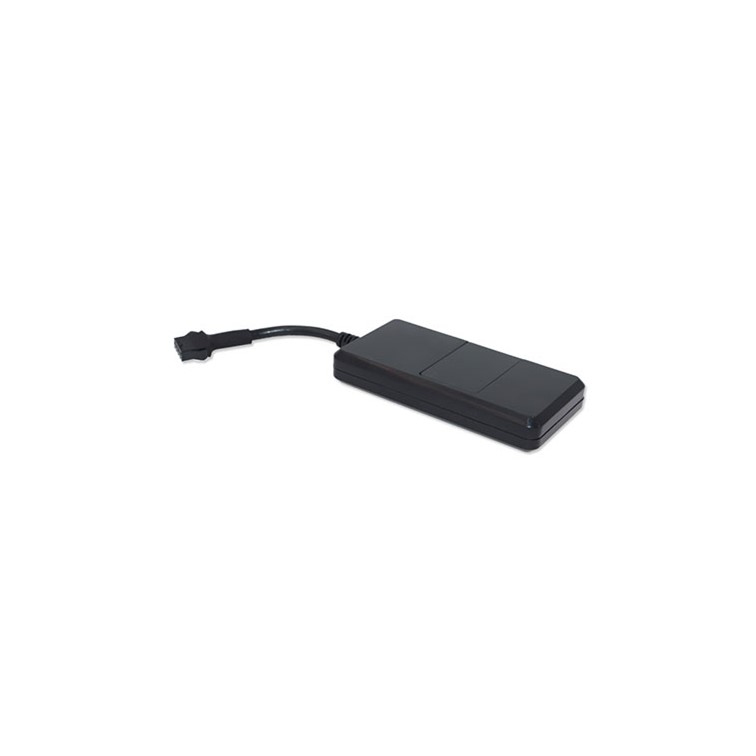

Asset GPS Tracker - 2G/3G/4G
- Wide range voltage input range: DC 9-100V
- Supports GPS/LBS /AGPS positioning
- Ignition detection
- Real-time GPS tracking, history playback, blind data storage, cornering compensation
- Remote power and fuel control ( Relay required)
- Built-in G-sensor
- Dual IP supported (Main server and backup server)
- OTA for easier maintenance
- Built-in backup battery
- Real-time tracking and monitoring, real-time GPS tracking, history playback, blind data storage, cornering compensation
- Tracking according to time, distance and speed
- LBS and AGPS positioning
- Low voltage and main power cut off alarm
- Towing alarm
- Remote power and fuel cut off (Relay required)
- Mileage calculation
|
Physical |
Dimension |
88mm*45mm*14mm（L*W*H） |
|
Weight |
47±5g |
|
|
Cellular |
LTE module |
Quectel EC25 |
|
Frequency |
Working frequency: 4G networks: TDD LTE/FDD LTE 3G networks: WCDMA 2G networks: GSM/GPRS Network Protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz; -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz; Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
|
GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
|
Power |
Input voltage |
9-100V |
|
Battery |
NI-MH AAA 3.6V/110mA, 2 hours working time based on 2-3 minutes upload |
|
|
Power consumption |
Average Current: <30mA (DC 12V) Maximum current: <10mA (DC 12V) |
|
|
Interface |
Digital input(1) |
Ignition detection |
|
Digital output(1) |
Relay |
|
|
GSM antenna |
Internal High Gain |
|
|
GPS antenna |
Internal High Gain |
|
|
SIM |
Micro SIM |
|
|
Indicator |
2 status LEDs, Green: GPS, Red: GSM |
|
|
Memory |
1300 pcs |
|
|
Environmental Parameter |
Working Temperature |
-20℃ ~ +70℃ |
|
Humidity |
5% ~ 95% (no fog) |
|
|
Ingress Protection Rating |
IP65 |
|
