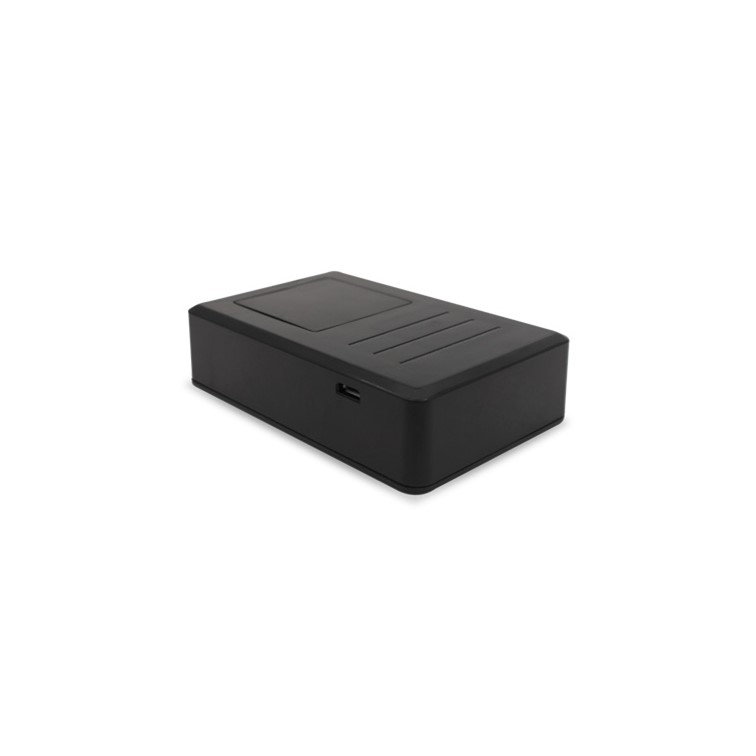

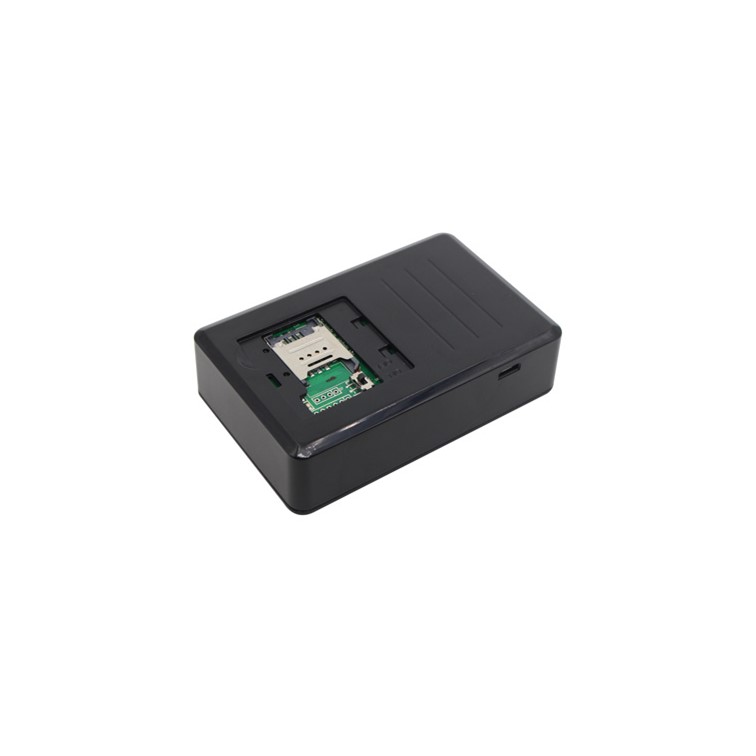

Asset GPS Tracker - 2G Rechargeable
TRA00-2G is a 2G rechargeable long standby GPS tracker with 5600mAh built-in battery, and built-in GPS/GSM antenna, supporting GPS, LBS and AGPS positioning and tracking. It’s ideally suitable for assets which need real time tracking.
Highlights
- No wiring needed, easy for installation
- Rechargeable and long standby
- Built in grade rechargeable polymer lithium battery, capacity 5200mAH
- Built in G-sensor for motion and static detect
- Wide network coverage, supports 4G,3G and 2G
- Built in with high-sensitivity low-power three-axis G-sensor accelerometer,
- Supports OTA upgrading, reduce maintenance on site
- Built in high sensitive light sensor with tamper proof alarm

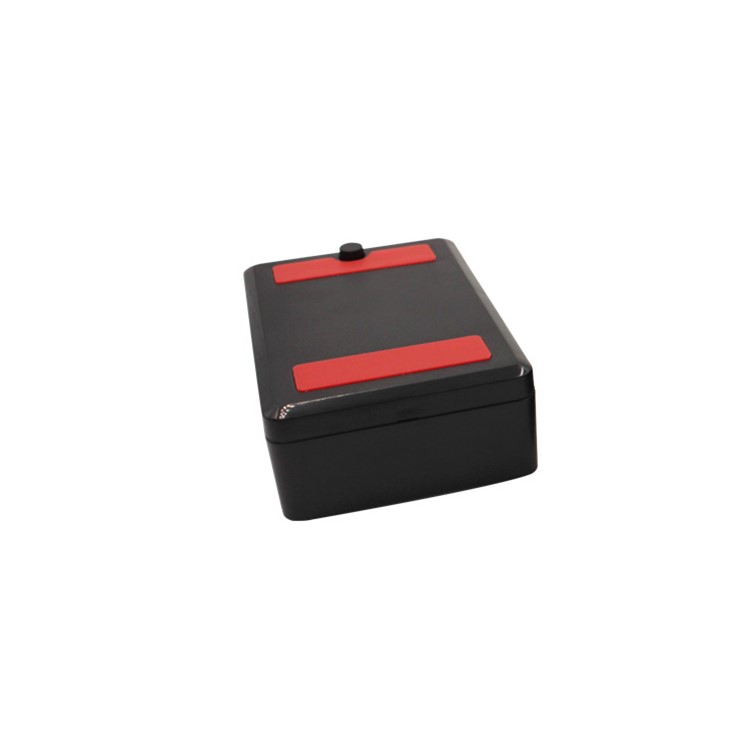

- Strong magnetic
- Multiple position mode：GPS、AGPS、LBS
Functions
- Position and monitor
- Timely Tracking
- Blind area data storage
- Cornering Compensation
- LBS, AGPS
- Battery level detect
- Speeding, low speed alarm
- Battery charge and discharge protection
- Low Voltage alarm
- GPS error alarm
- Static drift suppression
- Illegal Movement alarm
- Mileage statistics
Specification
|
Characteristics |
Description |
|
Built in battery specification |
Rechargeable polymer lithium battery (3.7V, 5600mAH) |
|
Working current |
Average Current<100mA；Power save<10mA |
|
Dimension |
92mm*59mm*24.5mm （L*W*H）/LT03 92mm*59mm*30mm（L*W*H）/LT03C |
|
Weight |
148±5g(LT03) 200±5g(LT03C) |
|
Working Temperature |
-20℃～70℃ |
|
Storage Temperature |
-40℃～85℃ |
|
Relative Humidity |
5%～95% |
|
Frequency |
4Gnetwork：TDD LTE/FDD LTE 3Gnetwork：WCDMA 2Gnetwork：GSM/GPRS |
|
GNSS Parameter |
GPS L1:1575.42MHz; BD B1: 1561.098MHz（Optional） |
