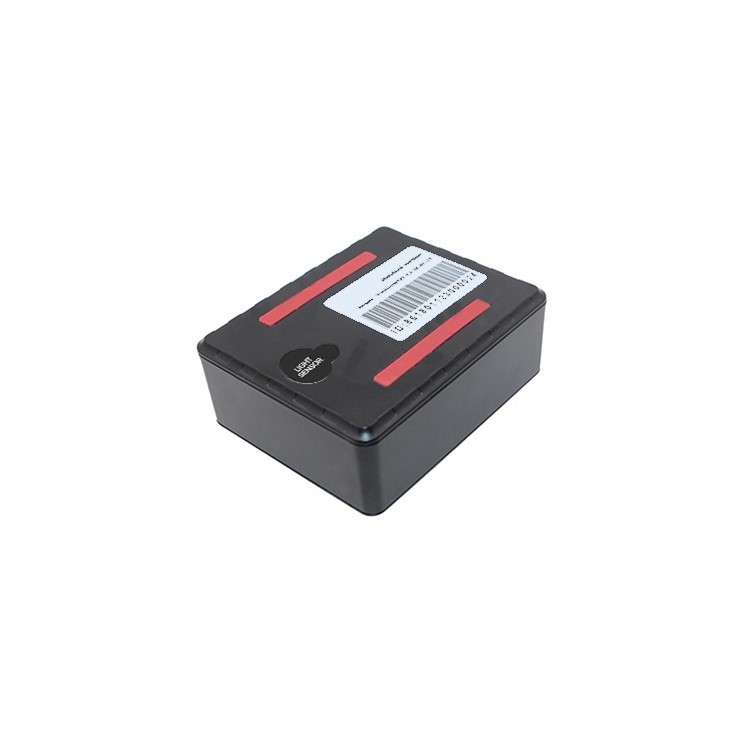

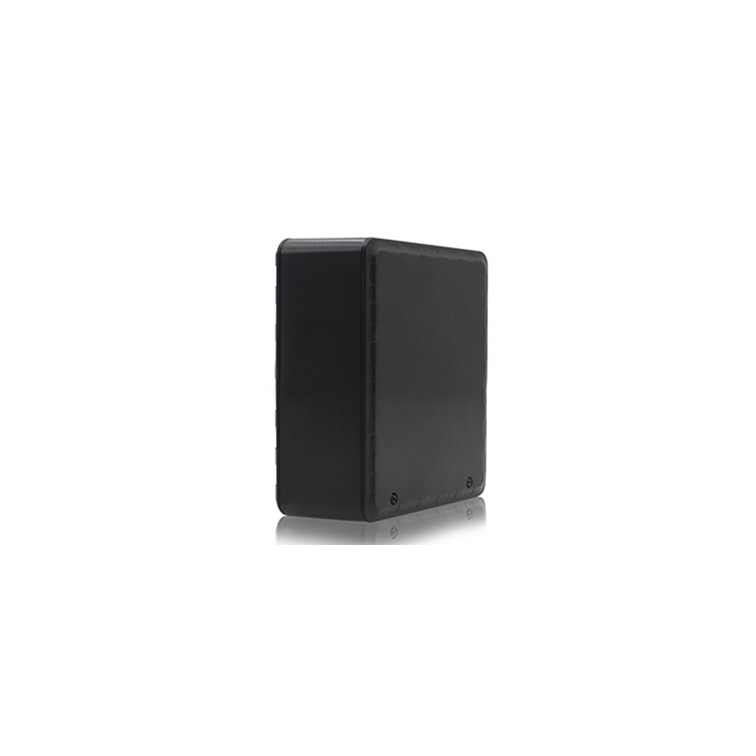

Asset GPS Tracker - 3G
- No wiring required, easy for installation
- Built-in large-capacity disposable lithium-ion battery, with ultra-low
- self-discharge rate and extremely wide temperature adaptability.
- Battery can be last for 5 years based on reports one GPS position every day
- Ultra-low consumption, decrease to 15uA below when in sleep mode
- Terminal is with smallest size and easy for concealable installation
- Built in strong magnetic
- Support tamper proof alarm
- Multiple position mode: GPS, AGPS, LBS
- Supports OTA upgrading, reduce maintenance on site
- Supports 2 guardian numbers to remote monitoring and receiving alarms
- IP67 waterproof
Functions
- Position and monitor
- GPS Positioning
- AGPS Positioning
- LBS Positioning (Need map database support)
- Intelligent Tracking
- Blind Zone Compensation
- Clock Mode
Specification
|
Physical |
Dimension |
81mm*66mm*33mm（L*W*H） |
|
Weight |
193±5g |
|
|
Cellular |
Communication module |
Quectel UG96 |
|
Frequency |
Working frequency: GSM: 850/900/1800/1900MHz UMTS(WCDMA):850/900/1900/2100MHz protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz; -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz; Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
|
GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
|
Power |
Battery |
Disposable Lithium-ion battery and （3.6V, 8100mAh） and ultra-low discharge rate: less than 1%, store one year below 25℃ |
|
Power consumption |
Average working current <100mA; Power save current <15uA; |
|
|
GSM antenna |
Internal High Gain |
|
|
GPS antenna |
Internal High Gain |
|
|
SIM |
Micro SIM |
|
|
Indicator |
2 status LEDs, Green: GPS, Red: 3G |
|
|
Environmental Parameter |
Working Temperature |
-20℃ ~ +70℃ |
|
Humidity |
5% ~ 95% (no fog) |
|
|
Ingress Protection Rating |
IP |
|
