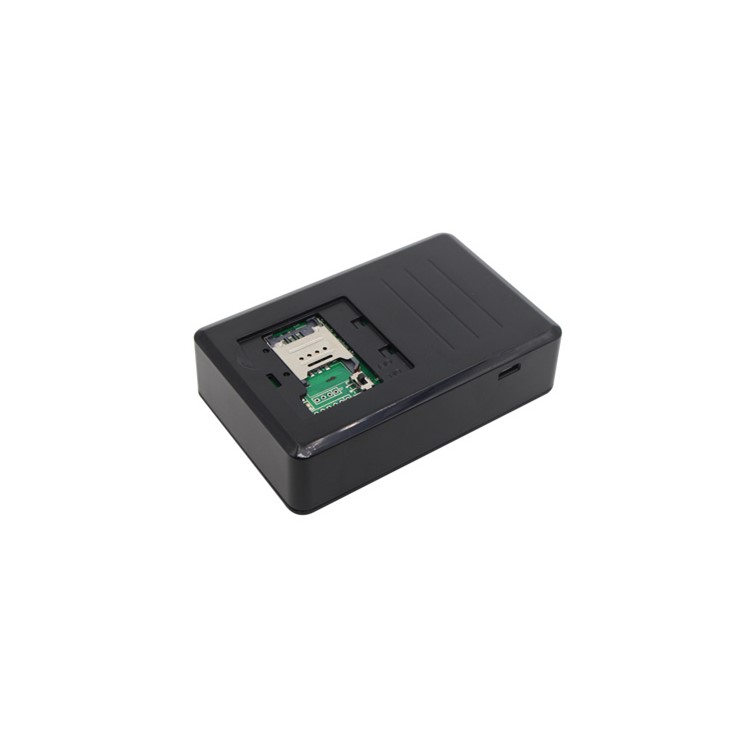

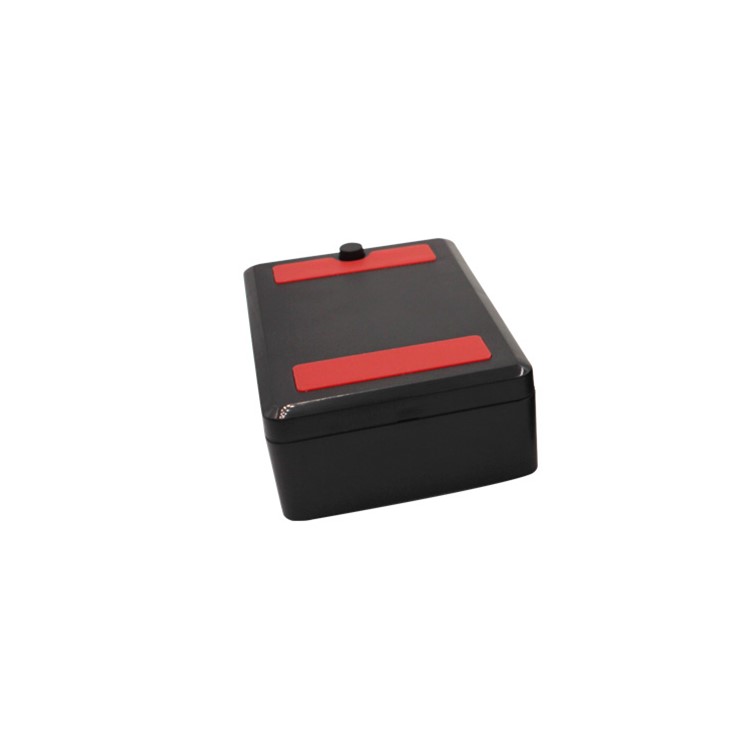

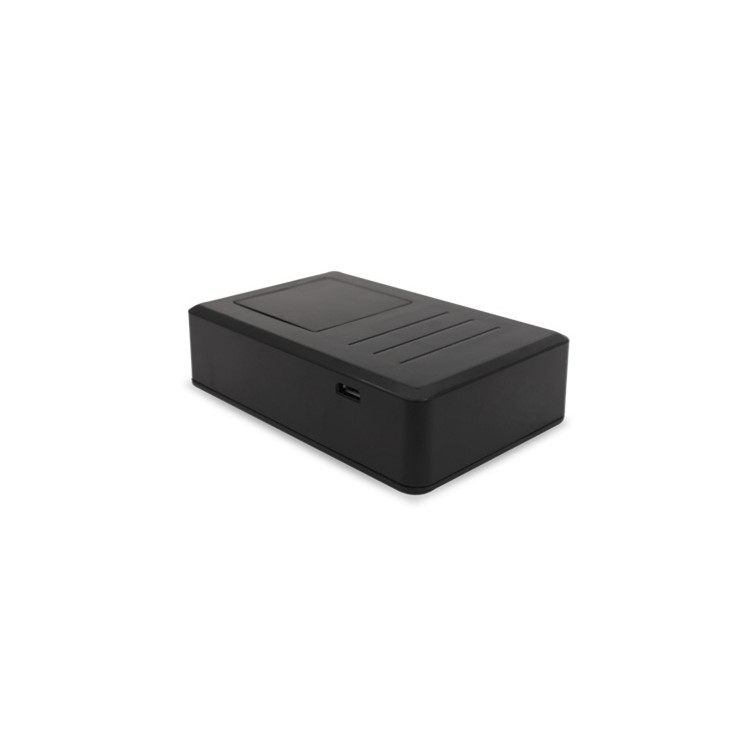

Asset GPS Tracker - 4G Rechargeable

TRA00-4G is a 4G rechargeable long standby GPS tracker with 5600mAh built in battery, and built-in GPS/GSM antenna, supporting GPS, LBS and AGPS positioning and tracking. It’s ideally suitable for assets which needs real time tracking.

Highlights



  • No wiring needed, easy for installation
  • Rechargeable and long standby
  • Built in grade rechargeable polymer lithium battery, capacity 5200mAH
  • Built in G-sensor for motion and static detect
  • Wide network coverage, supports 4G,3G and 2G
  • Built in with high-sensitivity low-power three-axis G-sensor accelerometer,
  • Supports OTA upgrading, reduce maintenance on site
  • Built in high sensitive light sensor with tamper proof alarm
  • Strong magnetic
  • Multiple position mode:GPS、AGPS、LBS



Functions



  • Position and monitor
  • Timely Tracking
  • Blind area data storage
  • Cornering Compensation
  • LBS, AGPS
  • Battery level detect
  • Speeding, low speed alarm
  • Battery charge and discharge protection
  • Low Voltage alarm
  • GPS error alarm
  • Static drift suppression
  • Illegal Movement alarm
  • Mileage statistics



Specification



Physical

Dimension

92mm*59mm*30mm(L*W*H)

Weight

200±5g

Cellular

Communication module

Quectel EC25

Frequency

4G network: TDD LTE/FDD LTE

3G network: WCDMA

2G network: GSM/GPRS

GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s

Power

Battery

Rechargeable polymer lithium battery (3.7V, 5200mAH)

Power consumption

Average Current<100mA;Power save<10mA

GSM antenna

Internal High Gain

GPS antenna

Internal High Gain

SIM

Micro SIM

Indicator

2 status LEDs, Green: GPS,  Red: GPRS

Environmental Parameter

Working Temperature

-20℃~ +70℃

Humidity

5%~95% (no fog)

Ingress Protection Rating

IP65
