INTRODUCTION

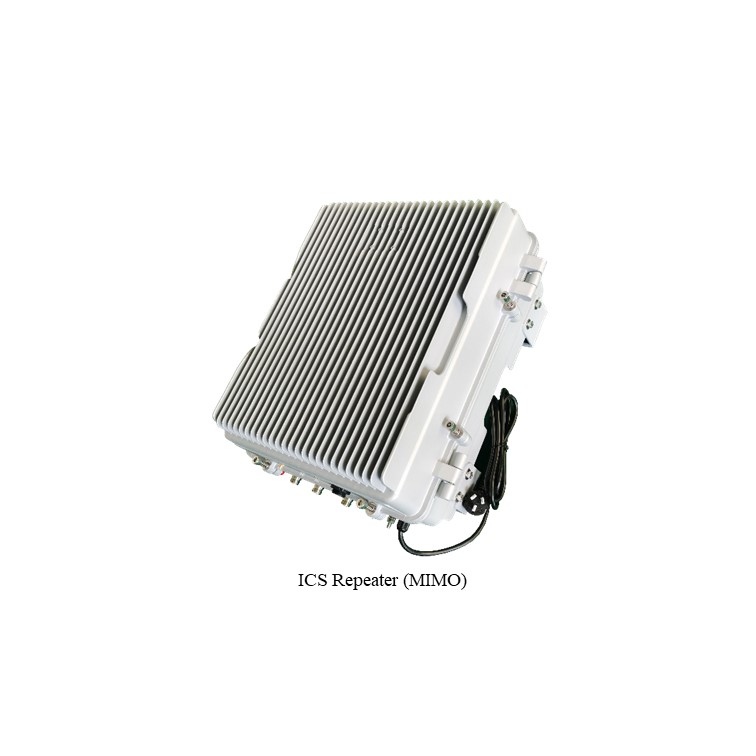

The HWSR-ICS series is multi-band signal repeater with ICS (Interference Cancellation System) function, making the outdoor deployment easier because of less isolation requirement. A single ICS repeater can support up to four frequency bands mixed by 2G, 3G or 4G cellular standards, and each band can have one or more channels or sub-bands. To adapt to different application scenarios with different area, the max output RF power of the repeater could be designed ranging from 33dBm (2W) to 43dBm (20W). 2*2 MIMO could be supported to provide higher data throughput. The ICS repeater is a simple, easy-to-install and low-cost solution to provide wireless signal coverage in blind or weak coverage areas.

KEY FEATURES

1. ALC (Automatic Level Control) and no-load protection function to improve the safety of equipment.

2. High-power and high-linear amplifier technology is adopted to ensure that the signal is not distorted after being amplified, and the background noise elevation of the base station is reduced.

3. Less isolation requirement for easier outdoor application; support isolation detection.

4. 30dB of feedback interference cancellation.

5. Sub-band & channel selection and shift.

6. 2*2 MIMO could be supported for higher performance.

7. DC or AC power supply is optional.

8. Aluminum alloy chassis meets IP65 protection grade, high heat dissipation design, suitable for both outdoor and indoor condition.

9. Support local and remote network monitoring functions, including active alarm, query, and parameter setting.

10. Support connecting to the network management platform in wired or wireless mode (optional).

APPLICATION SCENARIOS

MAJOR PARAMETERS

NETWORK DIAGRAMS

Scenario 1: Indoor areas (building, factories, underground areas, etc.)

Scenario 2: Outdoor areas (remote villages, mountains, mining, etc.)
