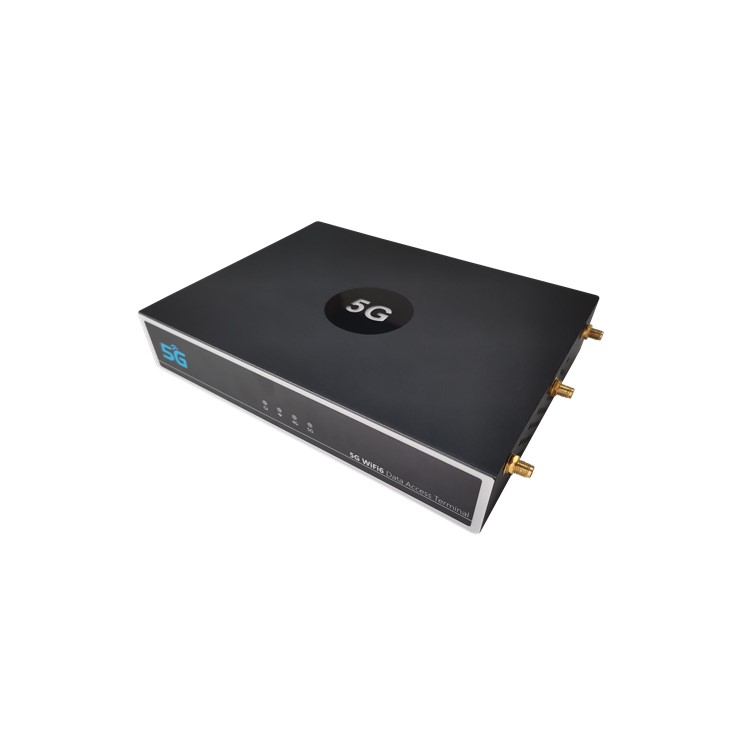

5GCPEwithexternalantennasM510picture1

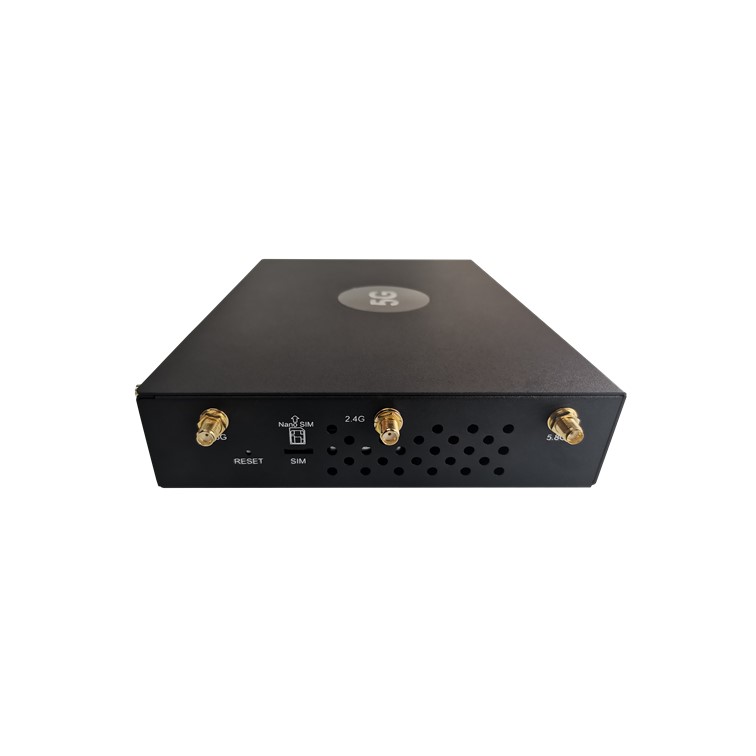

5GCPEwithexternalantennasM510picture2

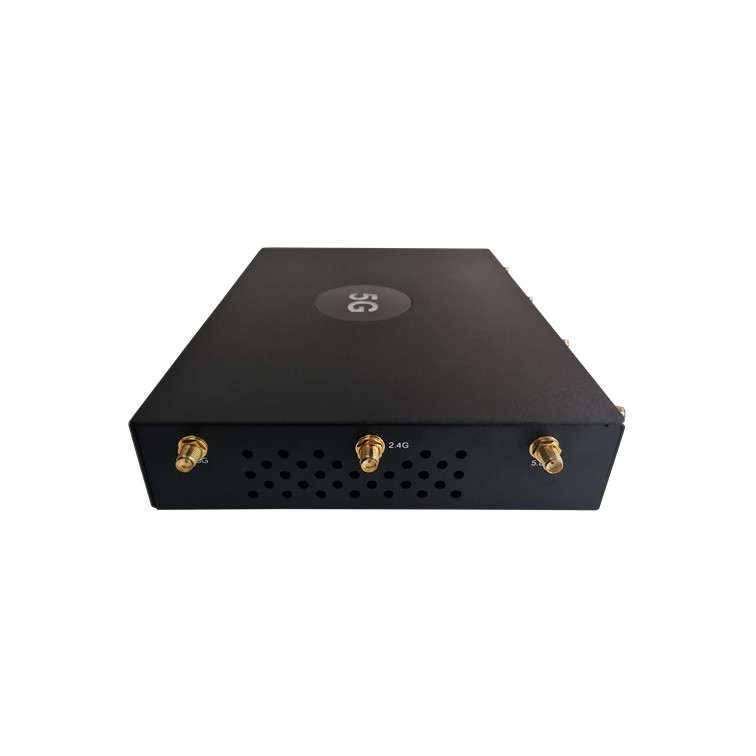

5GCPEwithexternalantennasM510picture3

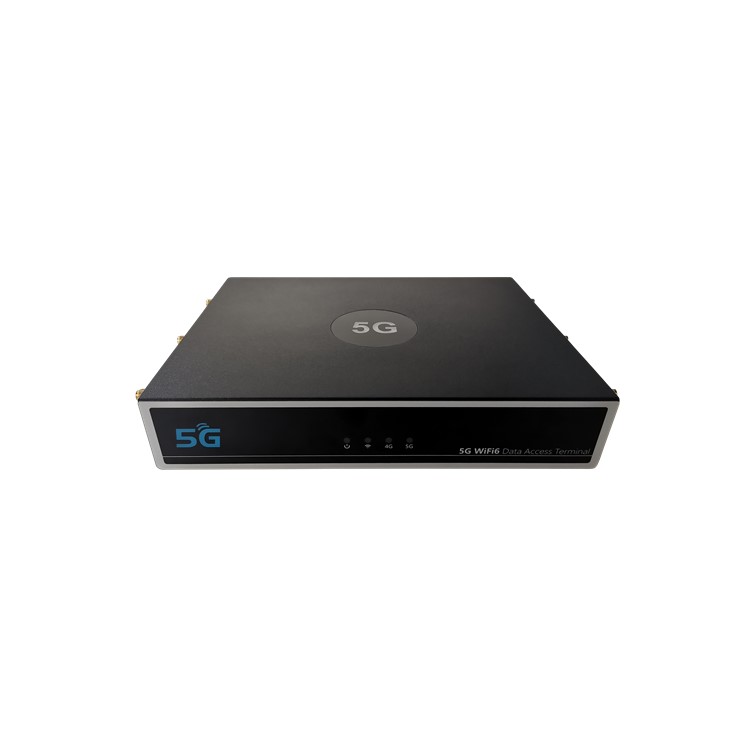

5GCPEwithexternalantennasM510picture4

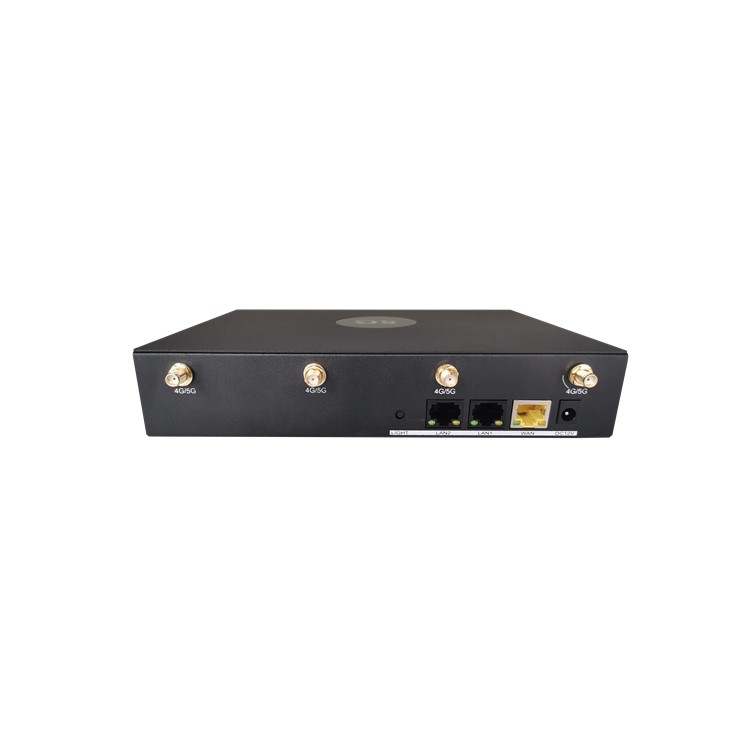

5GCPEwithexternalantennasM510picture5
5GCPEwithexternalantennasM510picture6

5G CPE M510

The 5G CPE M510 is a high performance 5G<E indoor router based on Qualcomm X55, supporting Wi-Fi 6. Designed with external 5G & LTE and Wi-Fi antennas, M510 can provide better signal reception and transmission capability, and give users flexibility to connect outdoor cellular antennas for optimal signal reception.

 Overview



The 5G CPE M510 (5G & LTE Wireless Router) is based on a brand-new platform to meet the demand for ultra-fast network speed, increasing number of IOT connections, and enabling the latest services such as VR, AR, and 4K&8K HD video streaming.



Designed with external 5G & LTE and Wi-Fi antennas, M510 can provide better signal reception and transmission capability, and give users flexibility to connect outdoor cellular antennas for optimal signal reception.



The CPE supports 5G SA/NSA dual-mode and 4G networks, and works with most 5G and LTE networks in the world. With 802.11ax (Wi-Fi 6) technology, the CPE has wider wireless coverage while providing bigger bandwidth. The MESH+ technology integrated makes it easy for the CPE to cover more areas and all corners for a seamless Wi-Fi coverage.



Key Features



5G Cellular

With Qualcomm™ SDX55 modem, M510 has leading 5G network performance and works with legacy 4G networks worldwide.



Wi-Fi 6 (802.11ax)

OFDMA and DL MU-MUMI enable faster and simultaneous transmission to more devices with lower latency. Wi-Fi 6 provides a clearer and stronger Wi-Fi signal to achieve seamless coverage and higher energy efficiency. With dual-band 6 spatial streams, the theoretical download speed reaches up to 3100 Mbps (600 Mbps + 2475 Mbps).



External Antennas

All 5G&LTE and Wi-Fi antennas are external, providing better signal reception and transmission capability, and giving users flexibility to connect outdoor cellular antennas for optimal signal reception.



Hybrid MESH+ Networking

The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so easy and convenient to cover more areas and all corners by adding one more MESH+ node (another series of router) to have a seamless whole-home coverage.



Hardware & Radio Specification



Chipsets

Qualcomm IPQ8071A + Qualcomm Snapdragon X55

Flash

16MB + 256MB Flash

RAM

4Gb DDR3

5G Standard

3GPP Release 15, Sub-6 GHz

5G Network Mode

NSA/SA

5G/4G Data Rate

5G SA Transmission Speed: DL 2.1Gbps / UL 900Mbps

5G NSA Transmission Speed: DL 2.5Gbps / UL 650Mbps

LTE: DL 1.0 Gbps, UL 200 Mbps

(Note: Actual speed depends on operator network and environment)

5G Frequency Bands

5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

5G NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

MIMO

Downlink:4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79

Uplink:2 × 2 MIMO on n41

4G&3G Frequency Bands

LTE Category: Downlink Cat 16/ Uplink Cat 18

LTE-FDD

B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

LTE-TDD

B34/B38/B39/B40/B41/B42/B43/B48

Downlink 4 × 4 MIMO

B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66

WCDMA

B1/B2/B3/B4/B5/B6/B8/B19

CA

2CA, 3CA (CA combinations could be provided additionally)

EN-DC

1LTE+1NR, 2LTE+1NR, 3LTE+1NR (EN-DC combinations could be provided additionally)

Wi-Fi Frequency

Dual-band: 2.4GHz&5GHz

Wi-Fi Standard

5GHz: 802.11a/n/ac/ax, 4T4R MIMO; 2.4GHz: 802.11b/g/n/ax, 2T2R MIMO;

Wi-Fi Throughput

2.4GHz: 600Mbps; 5GHz: 2475Mbps

Wi-Fi Maximum Transmit Power

2.4GHz: 21-25dBm; 5GHz: 19-24dBm

Wi-Fi Connection

>500 clients

Modulation Mode

5G: GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM

WI-FI: 1024-QAM / OFDMA

Antennas

4 external 5G/LTE antennas

2 external 2.4GHz Wi-Fi antennas

4 external 5GHz Wi-Fi antennas

Interfaces

2*GE LAN, 1*2.5 GE WAN, 1*Power Adapter Port, 1 SIM card slot

Network Extension

Mesh

Button

Reset, Mesh

LED Indicator

Power, 4G Signal, 5G Signal, Wi-Fi Signal, Breathing Light

AC/DC Power Supply

AC (input): 100V~240V,50Hz~60Hz; DC (output): 12V/3A

Power Consumption

<24W

Environment

Operating Temperature:0℃~+45℃

Storage Temperature:-40℃~+70℃

Humidity:5%~95%(Non condensation)

Dimension

210x106x41mm (not including antennas)



Software Specification



Software Functions

Firewall

IPV4

IPV6

Smart QOS

Parent Control

UPNP

VPN L2TP VPN client, PPTP VPN client

APN

DHCP

DDNS

DMZ

Port Mapping

MESH (Private Mesh, Qualcomm Mesh, Wi-Fi-SON)

APP

PIN management

SIM card authentication

Static route

NAT/router mode

TR069

WebUI update

Wi-Fi encryption (Open, WEP, WPA2-PSK, WPA3-SAE, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE)

Wi-Fi band aggregation

Backup/restore settings
