Overview

The industrial 5G CPE IM813 is a 5G & LTE cellular router or gateway providing an Ethernet port of as access mode. Based on the leading Qualcomm SDX55 modem, the CPE can meet the demand for ultra-fast network speed, increasing number of IOT connections, and enabling abundant services such as VR, AR, and 4K&8K HD video streaming.

IM813 is IP65-rated with compact size, allowing it to be easily deployed together with various industrial equipment in different application scenarios, such as indoor and outdoor cameras, smart factories, AGV, mining sites, etc.

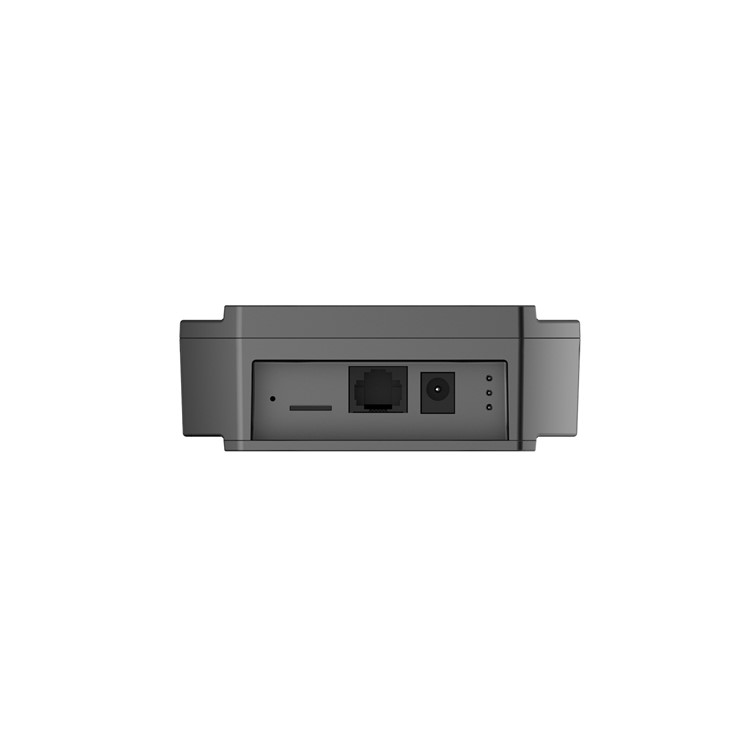

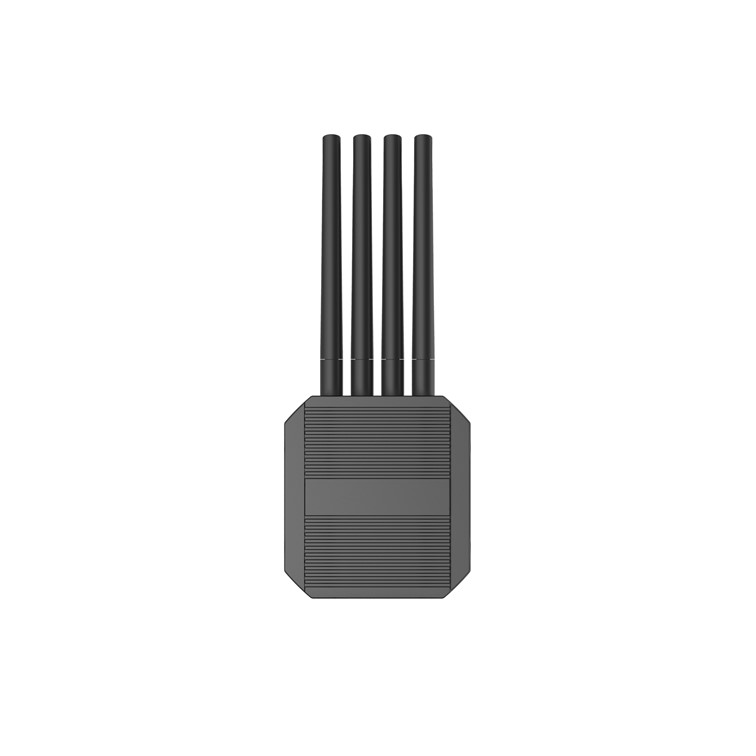

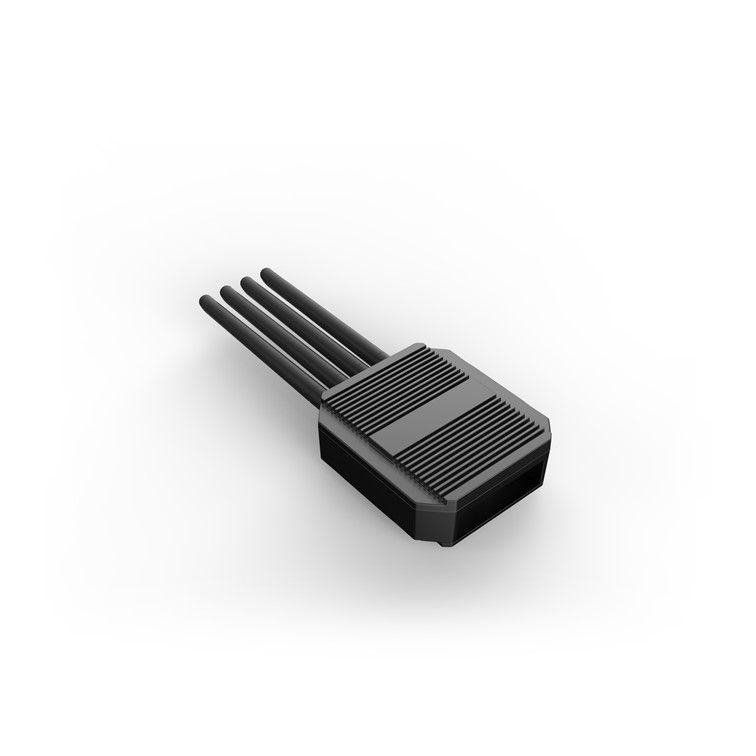

With 4 external cellular antenna interfaces of industrial grade, the CPE provides users with flexibility of choosing different types of antennas to adapt to their application scenarios. And it could be powered by either PoE or a power adapter.

Based on IPQ4029 Quad-core CPU and OpenWrt operating system, the gateway has the capability of edge computing and can provide SDK for secondary development to enable specific services or integration within a platform.

It supports ceiling-mounted, wall-mounted and pole-mounted installation for different sites indoors and outdoors. The gateway is widely used in smart factories, smart medical, mining sites, smart cities and other fields.

Key Features

5G Cellular

With Qualcomm™ SDX55 modem, the gateway has leading 5G mobile network performance and works with legacy 4G networks worldwide. It supports SA, NSA, public and private 5G networks.

Supporting harsh industrial environment

Designed with aluminum alloy body and industrial connection ports, the gateway is IP65-rated and could work in harsh industrial environment.

Flexibility

With 4 external cellular antenna interfaces of industrial grade, the gateway provides users with flexibility of choosing different types of antennas for various industrial application scenarios. And it supports ceiling-mounted, wall-mounted and pole-mounted installation for different sites indoors and outdoors. The power input choice between PoE and power adapter also adds to its flexibility.

SDK for secondary development

Based on IPQ4029 Quad-core CPU and OpenWrt operating system, the device has the capability of edge computing and can provide SDK for secondary development to enable specific services or integration within a platform.

Applications

Hardware and Radio Specification

Software Specification
