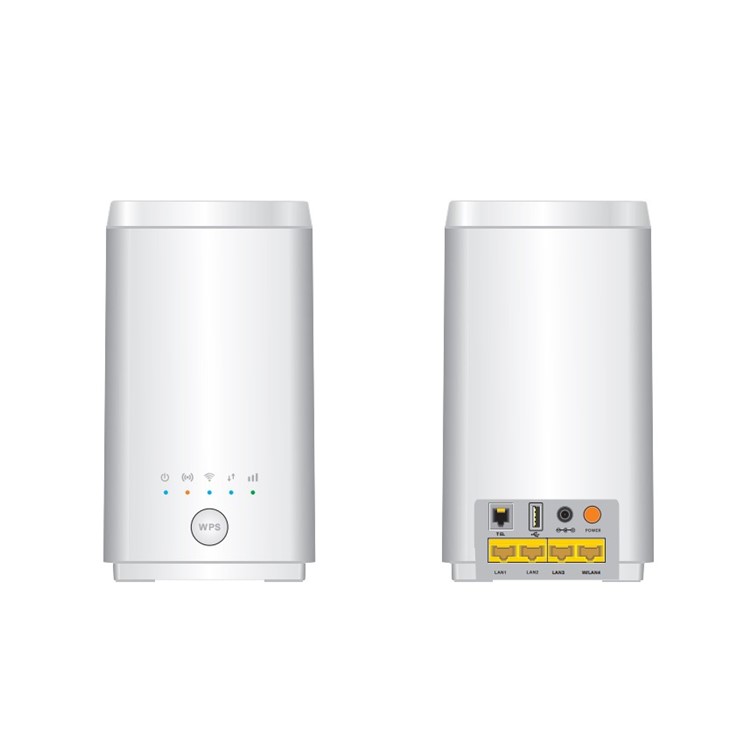

5G CPE M131 (5G & LTE Wireless Router)

The 5G CPE M131 is a cost-effective wireless router adopting Unisoc 5G Modem IVY510. It supports SA, NSA, TDD-LTE, FDD-LTE and ethernet networks, and provides 2.4GHz & 5GHz dual-band Wi-Fi as well as 4 Gigabit LAN ports. The CPE is suitable for FWA scenarios such as home or commercial internet access that require rapid deployment of WIFI hotspots and wired broadband networks.



The 5G CPE M131 is a high-performance 5G indoor wireless router based on Unisoc IVY510 5G modem, which supports 5G NR (SA&NSA), TDD-LTE and FDD-LTE. It converts cellular network data into WIFI and wired network port data, supporting 4 Gigabit LAN ports, 2.4GHz & 5GHz dual-band WIFI. It is suitable for home or commercial scenarios that require rapid deployment of WIFI hotspots and wired broadband networks.







Technical Specification


5G / 4G Cellular

1) 5G Network Modes: SA (standalone), NSA (non-standalone), 5G NR FDD, 5G NR TDD

2) 4G Network Modes: TDD-LTE, FDD-LTE

3) 5G Bands: n1/n3/n8/n28/n41/n77/n78/n79

4) 4G Bands: FDD-LTE, B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B32; TDD-LTE, B34/B38/B39/B40/B41

5) 5G/4G Standards: 3GPP Release 15 / Cat12

6) 5G Downlink Data Rate: up to 2Gbps (Theoretical speed)

7) 5G Uplink Data Rate: up to 1Gbps (Theoretical speed)

8) MIMO: 5G DL MIMO 4*4, 5G UL MIMO 2*2, LTE MIMO 2*2

9) 5G/4G TX/RX: 2T4R/1T2R

10) Output Power @25℃: 5G NR, 23+-2dBm; LTE, 23+-2dBm

11) Antennas: 4 built-in 5G NR antennas, 2 built-in 4G antennas TX/RX

WiFi (802.11ac)

1) Working Radio: 2.4GHz MIMO 2*2 + 5GHz MIMO 2*2

2) Wi-Fi Standard: IEEE 802.11b/g/n/ac

3) Antennas: 2 built-in 2.4GHz antennas & 2 built-in 5GHz antennas.

4) Wi-Fi Output Power: 16dBm@2.4G, 18dBm@5G

5) Wi-Fi Maximum Users: 2.4GHz, 32; 5GHz, 32


Hardware Specification

1) Chipset: UNISOC IVY510 (5G/LTE), Realtek 8198D (Wi-Fi)

2) Memory: 2Gb Flash + 4Gb DDR3

3) Ethernet: 4 *10/100/1000 Mbps

4) 1*SIM (3FF)

5) Buttons: Power, WPS, Reset

6) LED Indicators: Power, WiFi, 4G Signal, 5G Signal, Signal quality

7) General

–Power Consumption:<24W

–Power Supply: AC100V~240V, 50Hz~60Hz, DC 12V/2A

–Working temperature: 0℃~40℃, Storage temperature: -20℃~70℃



Package List


One 5G CPE Router M131
One 1m Cat6 Ethernet cable
One Power Adapter
Quick Start Guide




Datasheet: Hocell Indoor 5G CPE M131 Datasheet V2.0.pdf

User Manual: Hocell 5G CPE M131 User Manual_English _v1.1.pdf
