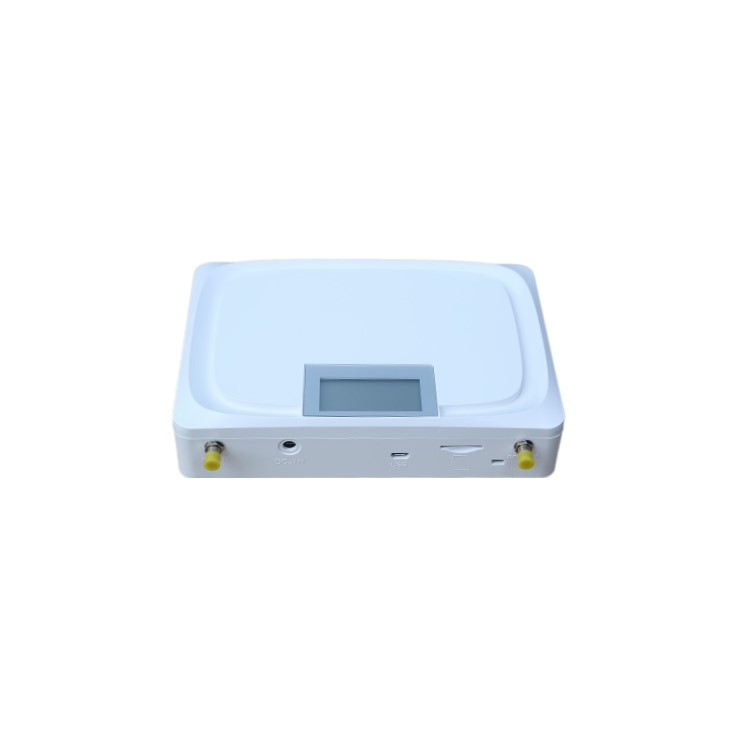

Hocell5GPicoRepeaterphoto3

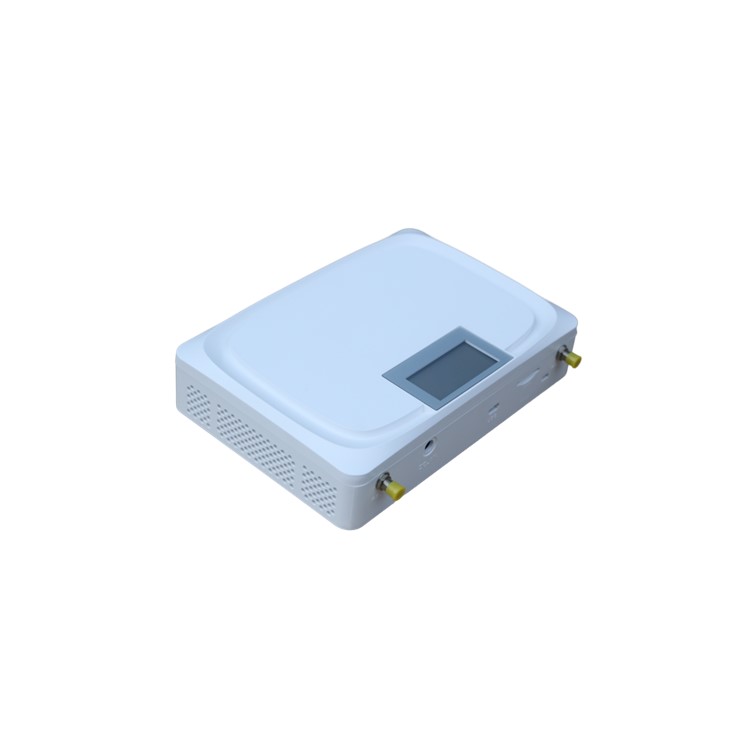

Hocell5GPicoRepeaterphoto2

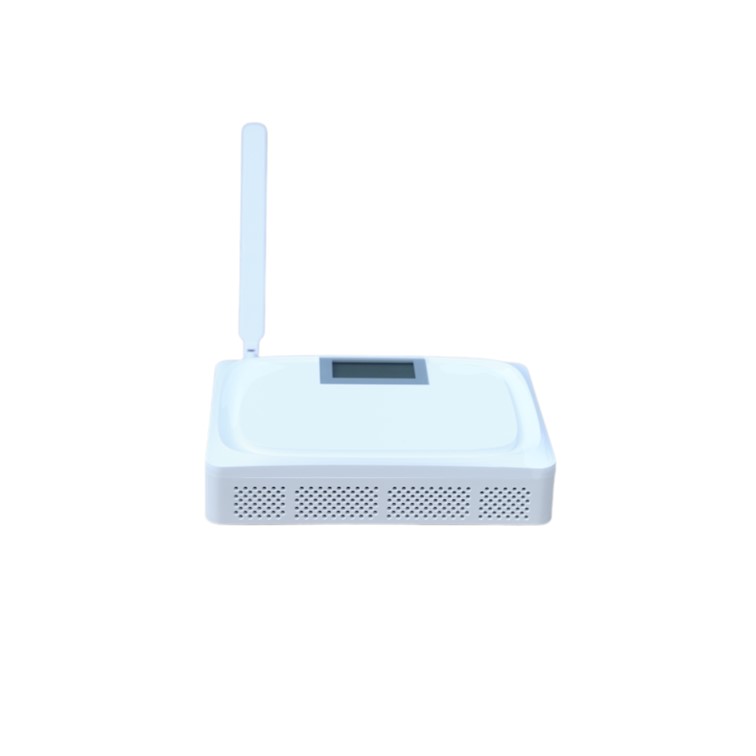

Hocell5GPicoRepeaterphoto4
Hocell5GPicoRepeaterphoto1

5G Cellular Signal Booster (HWSR-Pico Series)

Hocell HWSR-Pico series is a 5G Pico repeater which supports the most widely used 5G band (n77/n78/n41) and LTE band (B1/B3) in the world. It provides a simple, plug & play and low-cost solution to extend 5G&4G signals to areas with weak or unreliable cell signals.

Introduction



Cellular signal booster is also known as Pico repeater, Cell phone signal amplifier, Cell phone signal booster, etc.

Hocell HWSR-Pico series is a 5G Pico repeater that receives 5G/4G signals from cell towers outdoors, amplifies them, and redistributes the amplified signals indoors for seamless connectivity and uninterrupted communication. HWSR-Pico series supports the most widely used 5G band (n77/n78/n41) and LTE band (B1/B3) in the world. It provides a simple, plug & play and low-cost solution to extend 5G&4G signals to areas with weak or unreliable cell signals.

Considering that 5G signals often struggle to penetrate indoor areas because of the much higher frequencies adopted by 5G technology, 5G cellular signal boosters are being commonly used in underground or semi-underground spaces, homes, shops and markets, elevators, hotel and hospitality, small factories, etc.



Key Features



1. Support a most widely used 5G band and a common 4G band;

2. Both 5G SA and NSA networks are supported;

3. Self excitation detection and elimination function;

4. Unique LCD to indicate  the working state of the equipment in real time;

5. Application and installation are simple and convenient;

6. Optional remote monitoring function, supporting local PC connection;

7. Excellent appearance design.



Network Diagram



Hocell cellular signal booster consists of four parts: donor antenna, indoor coverage unit, service antenna and feeder. The donor antenna receives the signal from outdoor base stations and connects to the indoor coverage unit through the feeder. The coverage unit provides 5G&4G wireless signal coverage for personal terminals and IOT devices indoors through service antenna.





Application Scenarios





Specifications



Model: HWSR-Pico Series

Uplink

Downlink

Frequency Range

LTE Band

Band 3 (1800+) / Band 1 (2100) *

5G Band

n78/n41/n77 *

Bandwidth

LTE Band

Up to full band

Up to full band

5G Band

Up to 300MHz

Max. Gain

60±3 dB

65±3 dB

Gain Control Range

25 dB

Automatic Level Control

≧ 20 dB

Gain Flatness

≦ 7 dB

Output Power

FDD LTE1800

17±2 dBm

17±2 dBm

TDD N41

17±2 dBm

17±2 dBm

Spurious Emission

≦ -36 dBm (9KHz ~ 1GHz)

≦ -30 dBm (1GHz ~ 12.75GHz)

EVM

≦8%

Noise Figure

≦ 10 dB

VSWR

≦ 2.5

Group Delay

≦1 uS

RF Connector

SMA-Female

Impedance

50Ω

Power Supply

Input: AC 100-240 V; Output: DC 12 V/ 1 A

Power Consumption

≦ 10 W

Dimensions

220*170*37 mm

Weight

≦ 0.6 kg

IP Rating

IP30

Operating Temperature

0 to 40 ℃

Control &
Monitoring

Local

Via Micro USB Port

Remote

Via Wireless Modem (optional)



* One LTE band and one 5G band are supported in a Pico repeater. Other bands could be customized.
